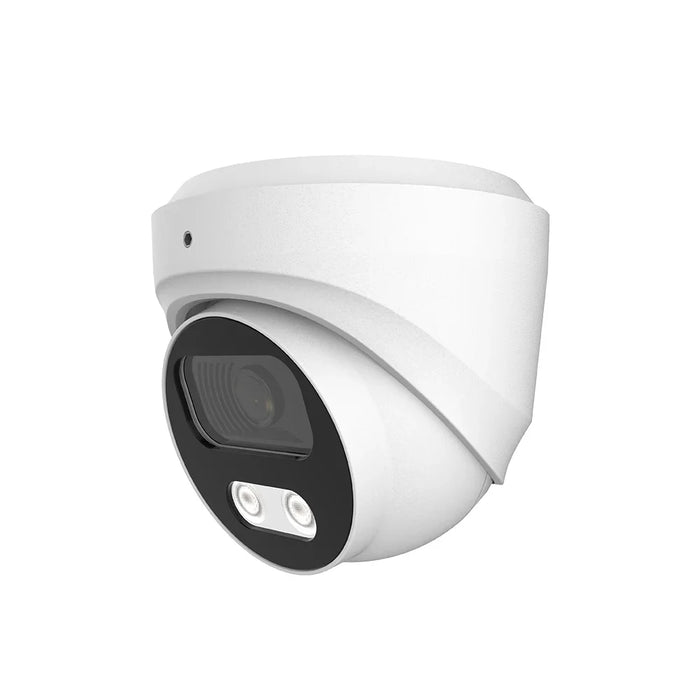

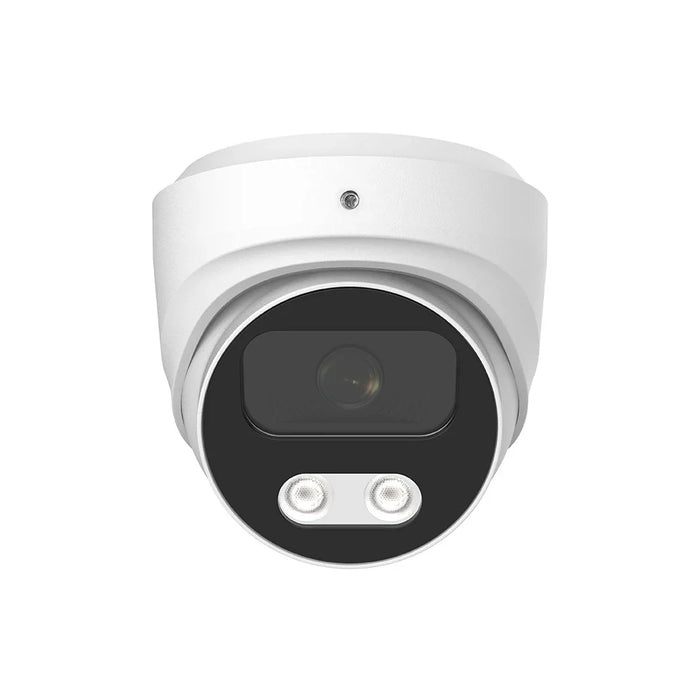

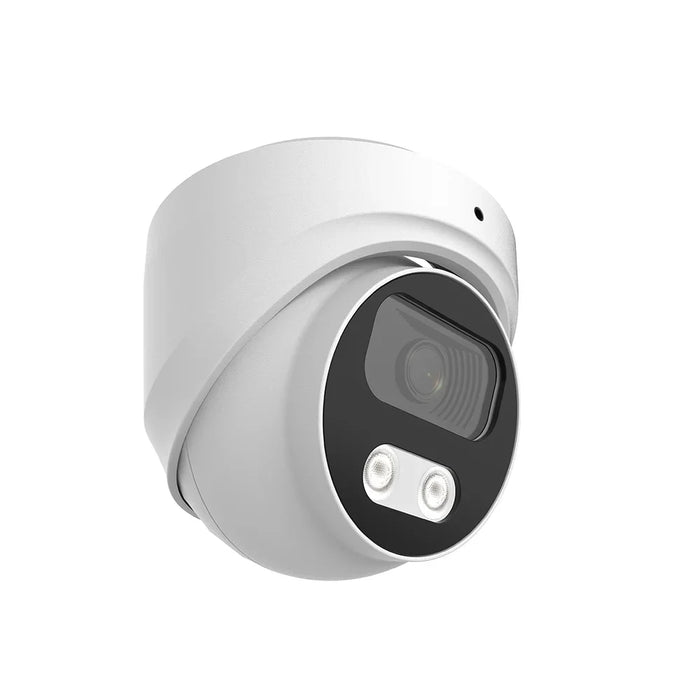

8MP HT-D8SBFKE28-FX Turret HD Analog Camera 2.8mm Lens Full Color AOC 2D-NR, UTC, OSD, With IR-CUT

8MP HT-D8SBFKE28-FX Turret HD Analog Camera 2.8mm Lens Full Color AOC 2D-NR, UTC, OSD, With IR-CUT
Availability:
Out of stock
SKU CST-HT-D8SBFKE28-FX
Sold out

8MP HT-D8SBFKE28-FX Turret HD Analog Camera 2.8mm Lens Full Color AOC 2D-NR, UTC, OSD, With IR-CUT

“1/2.5″” CMOS sensor, 8MP/4K, AOC (audio over Coax cable) 2D-NR, UTC, OSD, With IR-CUT, AHD/TVI: 8M@15fps, 5M@20fps, 4M/2M@30fps; CVI: 8M@15fp, 4M/2M@30fps
LED: 3015U*2, Warm white (4000K), up to 25m”

SPECIFICATION

  • Model NO.    HT-D8SBFKE28-FX
  • Video Output Mode    AHD: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps;                                               TVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps;
  • CVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M/2M@30fps/25fps

Camera

  • Image Sensor  -  1/2.5″ CMOS Sensor
  • Image Resolution -   8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
  • TV System  -  PAL/NTSC
  • Minimun Illumination  -  Color : 0.03 lux@F2.0, 0 Lux with white light
  • Scanning System  -  Progressive  Scan

Lens

  • Focus Length   - 2.8mm
  • Focus Control -   Fixed
  • Lens Type -   Fixed

Night Vision

  • IR Cut Filter  -  YES
  • Infrared LED  -  NO, Suport Warm white (4000K)
  • Infrared Distance  -  up to 25m
  • IR Status  -  AGC Auto Control

Camera Features

  • Starlight  -  N/A
  • Day/Night  -  Color
  • OSD Menu  -  YES
  • WDR -   DWDR
  • UTC  -  YES
  • Noise Reduction  -  2DNR
  • Coaxial Audio -   YES(only TVI)
  • White Balance  -  AUTO / MANUAL
  • Gain Control  -  AUTO

General

  • Housing  -  Metal , IP67
  • Bracket -   NO
  • Operation Temperature -   -10℃ ~ +60℃ RH95% Max
  • Storage Temperature  -  -20℃ ~ +60℃ RH95% Max
  • Power Source  -  DC12V±10%, 500mA
  • Dimension -   ￠96 x 91(H) mm
  • Weight  -  600g
