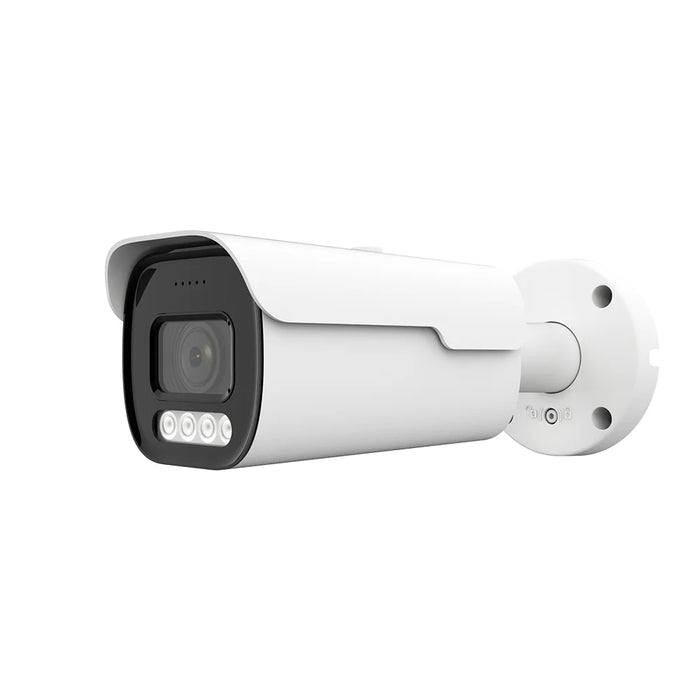

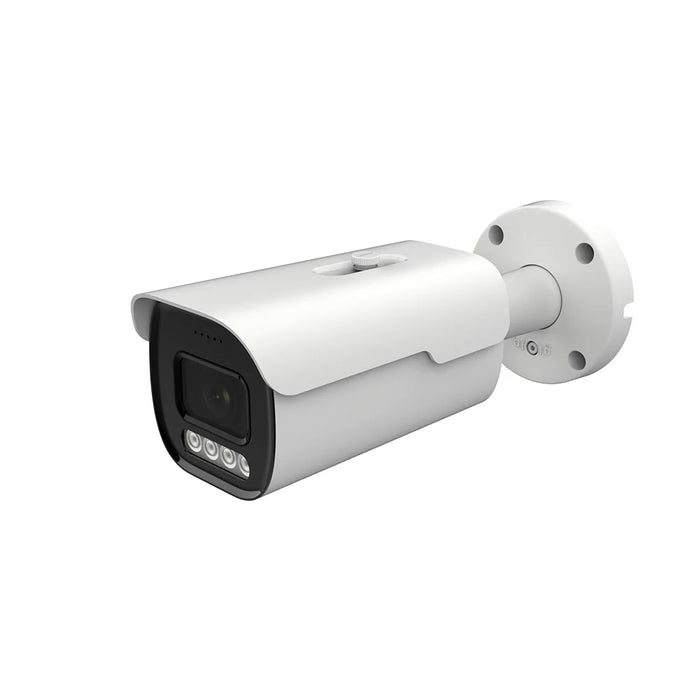

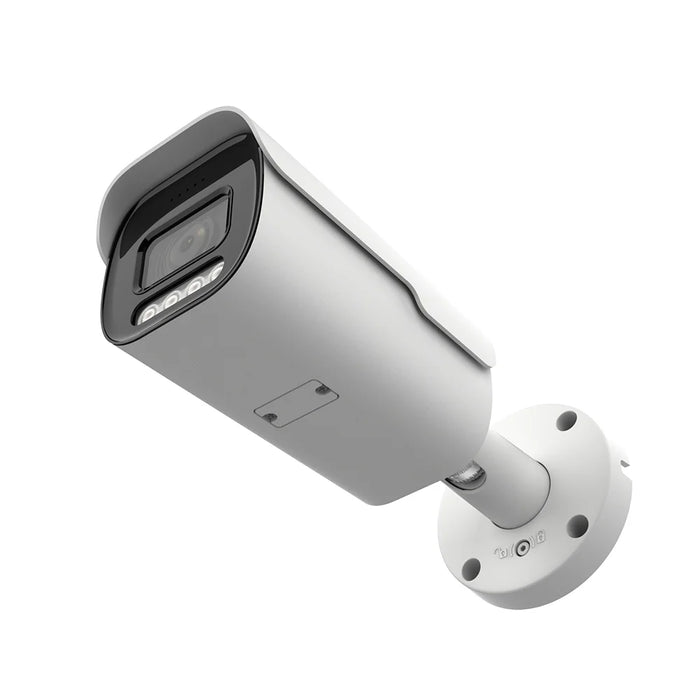

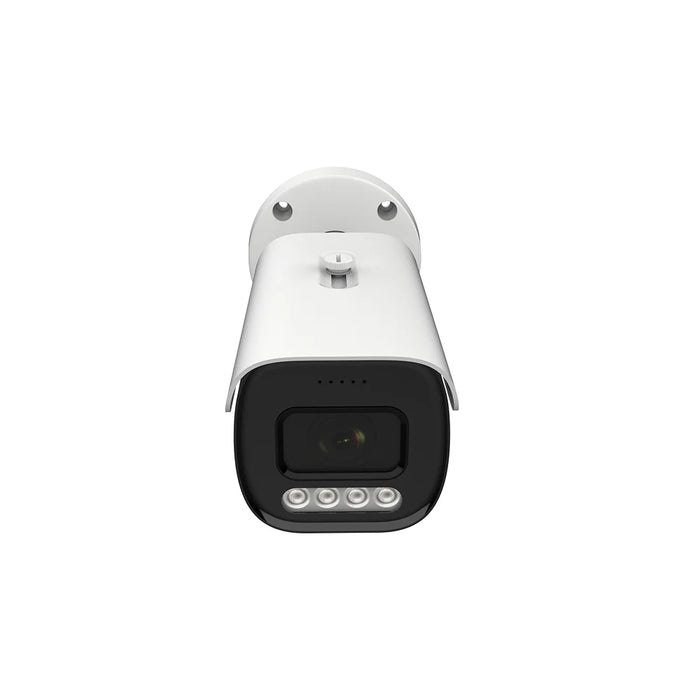

8MP HT-B8MBESLMZ-FC Bullet HD Analog Camera Full Color Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI

8MP HT-B8MBESLMZ-FC Bullet HD Analog Camera Full Color Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI
Availability:
Out of stock
SKU CST-HT-B8MBESLMZ-FC
Sold out

8MP HT-B8MBESLMZ-FC Bullet HD Analog Camera Full Color Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI

1/2.8″ SONY Starvis CMOS sensor, 8MP/4K, WDR, 3DNR, Defog, Smart-IR, UTC, OSD, With IR-CUT, AHD/TVI: 8M@15fps, 5M@20fps, 4M/2M@30fps; CVI: 8M@15fps, 4M/2M@30fps;
LED: 3015U*4, Warm white (4000K) up to 40m

Specifications

  • Model NO. - HT-B8MBESLMZ-FC
  • Video Output Mode- AHD: 8M@15fps, 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; TVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 8M@15fps/12.5fps,5M@20fps/12.5fps, 4M/2M@30fps/25fps

Camera



  • Image Sensor - 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • Image Resolution - 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
  • TV System - PAL/NTSC
  • Minimun Illumination - Color : 0.005 lux@F2.0, 0 Lux with white light
  • Scanning System - Progressive Scan

Lens

  • Focus Length - 2.7-13.5mm Motor Zoom
  • Focus Control  - Auto
  • Lens Type -  Auto

Night Vision

  • IR Cut Filter - YES
  • Infrared LED - NO, Suport Warm white (4000K)
  • Infrared Distance - up to 40m
  • IR Status - AGC Auto Control

Camera Features

  • Starlight - N/A
  • Day/Night - YES/NO
  • OSD Menu - YES
  • WDR - YES
  • UTC - YES
  • Noise Reduction - 3DNR
  • Coaxial Audio - NO
  • White Balance - AUTO / MANUAL
  • Gain Control -  AUTO

General

  • Housing - Metal, IP67
  • Bracket - NO
  • Operation Temperature - -10℃ ~ +60℃ RH95% Max
  • Storage Temperature - -20℃ ~ +60℃ RH95% Max
  • Power Source - DC12V±10%, 750mA
  • Dimension - 268(W) x 95(H) x 88(D)mm
  • Weight - 1500g
