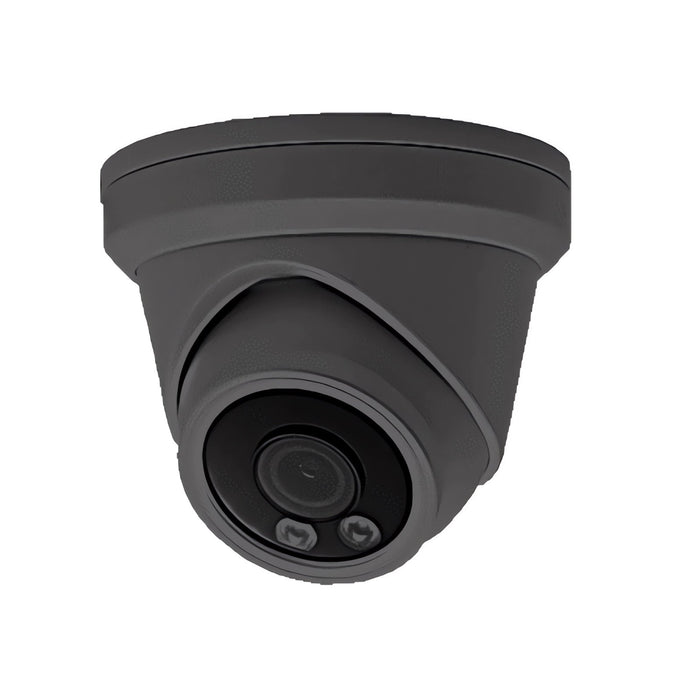

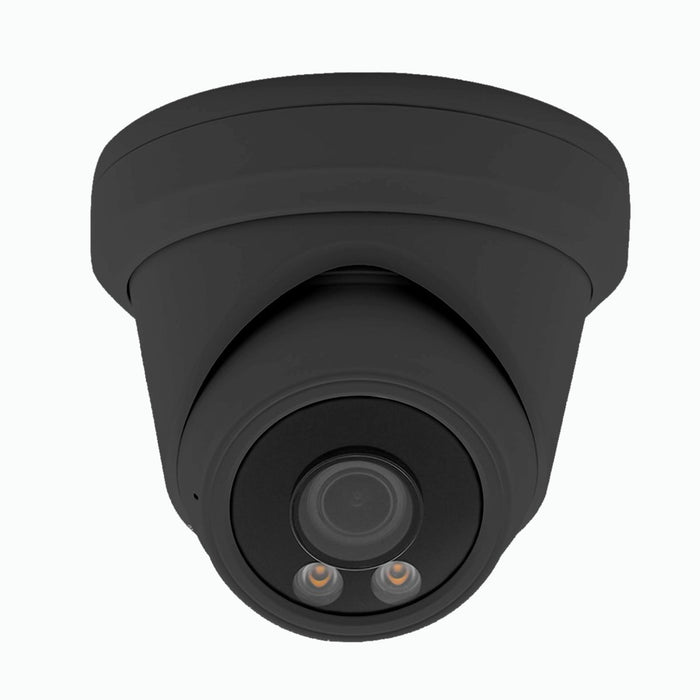

8MP 4K SONY Dual light Turret POE IP Camera 2.8mm H.264/H.265 with Human Detection - Black

Availability:
in stock, ready to be shipped
SKU AVS-565719

8MP 4K SONY Dual light Turret POE IP Camera 2.8mm H.264/H.265 Color Night Vision with Human Detection - Black

  • 1/2.8" SONY IMX415 CMOS sensor
  • 4K resolution, 20FPS, 8MP(3840 x 2160P)
  • Low illumination 0.01Lux
  • Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
  • D-WDR, Motion Detection, Privacy Mask, Mirror
  • RTSP and Onvif 11.07 compatible
  • MJPEG/H.265/H.264 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • Lightning protection 4000V
  • RJ45 100mbps network port, IEEE802.3af PoE
  • Metal housing, Strong water-proof housing, IP67
  • 2PCS Array Soft & Warm Lights+IR Leds, Light distance: 30M
  • HD 2.8mm F1.6 true starlight lens
  • 3 mode night vision: 1.Smart dual lights, 2.Pure warm lights, 3.Pure IR Leds
  • Build in Microphone
  • Internal POE ,IEEE802.3af PoE
  • DC12V/2A/POE+
  • Human & Vehicle Detection
  • HIKVISION Protocol and ONVIF

Specifications:

Camera
Image Sensor 1/2.8" SONY IMX415 CMOS
Effective Pixels 3840 (H) × 2160 (V)
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination 0.01Lux@F1.0(AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Indoor/Outdoor
BLC Support
DNR 2D/3D DNR
Other Motion Detection, Privacy Mask, Mirror, flip

Encode
Embedded Solution MC338Q
Video Standard H.264/H.265/MJPEG
Video Resolution Main Stream: 20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
  Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.
Video Bitrates 512Kbps - 12Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a
Audio Built-in Microphone
Smart Event Motion Detection / Human Detection / Vehicle Detection

Leds
Leds 2PCS Array Soft & Warm Lights+IR LEDs
Light Distance 30 M

Lens
Focal length HD 2.8mm F1.6 true starlight lens

Optional Function
2 ways audio, SD card slot, reset, etc.

Network Services
Protocol HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P Yes
Web IE , Firefox, etc.
Media CMS, Android, IOS
ONVIF 2.6 compatible

General
Network Port 1-RJ45, 100Mbps
Power Supply POE ,12 VDC ± 10%
Power Consumption Day< 3 W, Night< 9W (Lights ON)
Operating Temp. -30℃-(+60)℃, 10%-90%RH
