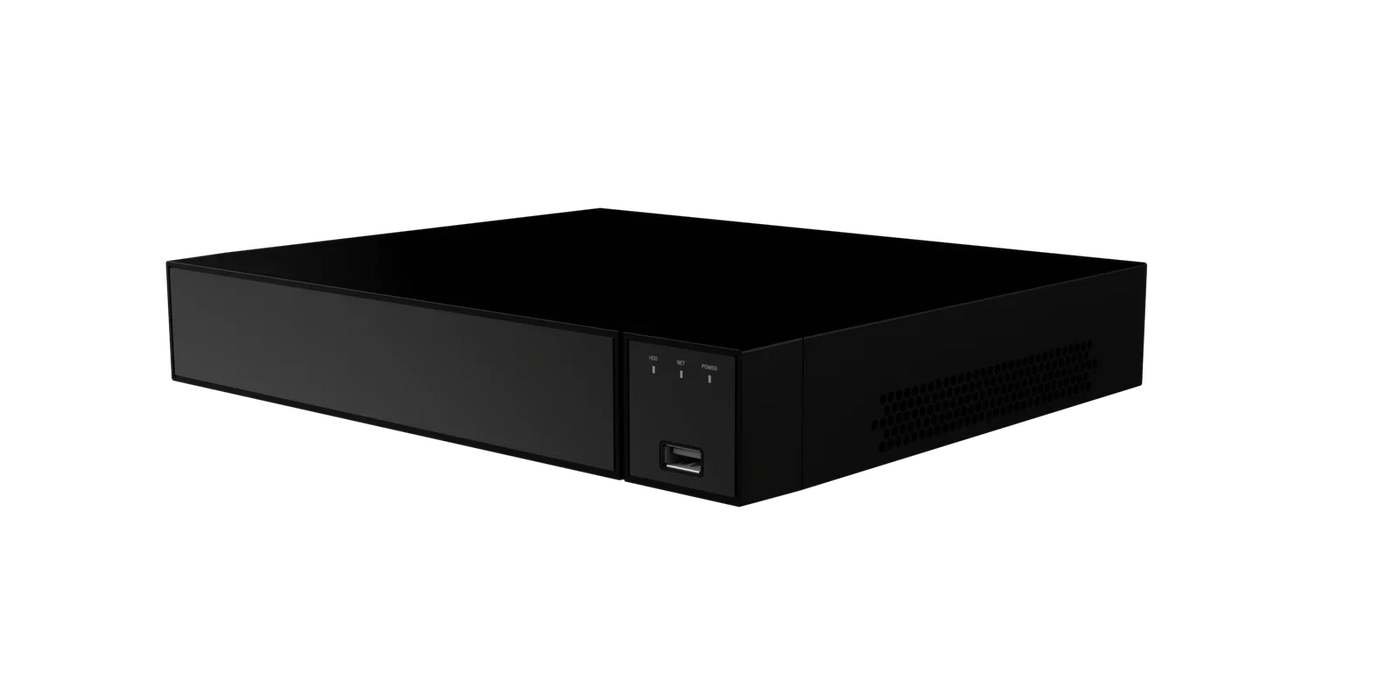

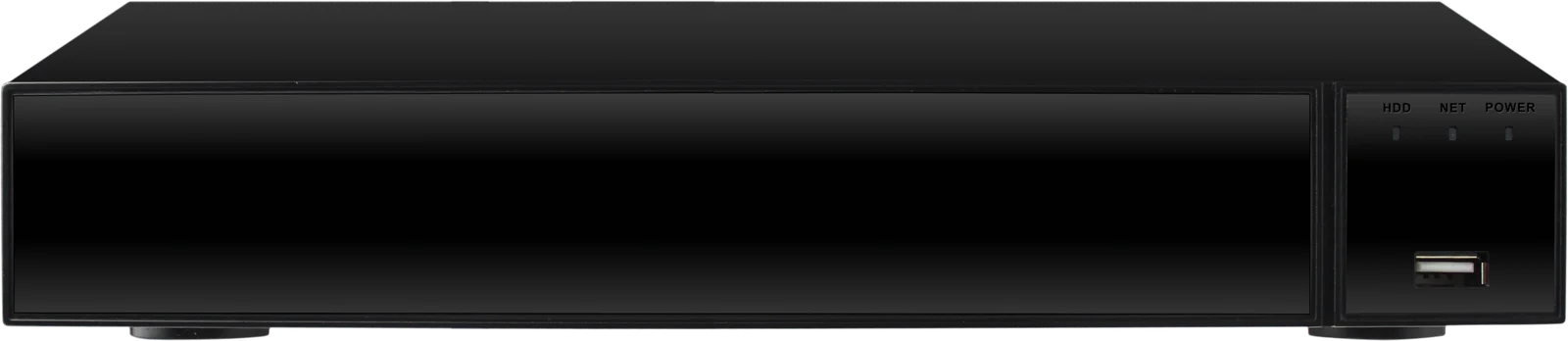

4-Channel CST XVR 4CH Hybrid 8MP Digital Video Recorder XR-5104N

4-Channel CST XVR 4CH Hybrid 8MP Digital Video Recorder XR-5104N
Availability:
in stock, ready to be shipped
SKU CST-XR-5104N

4-Channel CST XVR 4CH Hybrid 8MP Digital Video Recorder XR-5104N

4CH Hybrid 8MP Digital Video Recorder, 5 in 1: TVI, AHD, CVI, Analog, IP (IPC up to 16CH), HD Input: 8MP-N@8fps, 5M-N@10fps, 5M@6fps, 4M-N@15fps, 4M@8fps,3M-N@18fps, 3M@9fps, 2M@15fps, IPC 16CH@30fps max, 1 SATA, HD output, VGA, USB, Audio, Alarm, RS485, P2P Video Input: 4HD+2IPC


Specifications

  • Main Processor    MC6630
  • Operating System    Embedded LINUX

Video

  • Input    Normal Mode:
  • Default: 4*(AHD/TVI/CVI:8MP; TVI/AHD:5MP; AHD/TVI/CVI:4MP; AHD/TVI:3MP; AHD/TVI/CVI:1080P/720P; Analog:960H)+2*IPC(Max5MP) Analog+Network: 2*(AHD/TVI/CVI:8MP; TVI/AHD:5MP; AHD/TVI/CVI:4MP; AHD/TVI:3MP;AHD/TVI/CVI:1080P/720P; Analog:960H)+7*IPC(MAX 5MP)

LITE Mode:

  • Default: 4*(TVI/AHD: 5M@12fps;  AHD/TVI/CVI: 4M@15fps; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+2*network(MAX 5MP)
  • Analog+Network: 2*Analog(TVI/AHD/CVI: 5M@12fps;  AHD/TVI/CVI: 4M@15fps;  AHD/TVI/CVI: 3M@18fps;  AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+7*network(MAX 5MP)
  • Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)
  • Input    4CH BNC
  • Signal Type    Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
  • Output    1HD,1 VGA

Audio

  • Input    1 Channel, RCA,support AOC
  • Two-way Audio    NO
  • Output    1 Channel, RCA

Alarm

  • Sensor Input    4 CH
  • Output    1 CH
  • Motion Detection    4 Channel(max 16 Channel in pure network mode)
  • Trigger Events    Recording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
  • Email Alarm    Send Image to The Designated E-mail
  • AI Function
  • Human Detection    YES
  • PTZ
  • Interface    RS485
  • Protocol    Pelco-D, Pelco-P
  • Baud Rate    110~921600
  • Address    0~255

Display

  • VGA    Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
  • HD Output    Resolution: 1920 × 1080P/60Hz,  1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
  • Display Split    16 Channel/9 Channel/4 Channel / 1Channel
  • Privacy Masking    3 Rectangular Zones (Each camera)
  • OSD    Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

  • Video Compression    H.265/H.265+/H.264/H.264+
  • Audio Compression    G.711U/G.711A
  • Resolution    5MP,8MP_LITE,5MP_LITE,4MP,4MP_LITE,3MP,3MP_LITE,1080P,720P,960H
  • Video Quality    Lowest/Low/Ordinary/Good/Better/Best
  • Record Rate    Normal Mode:
  • Analog:PAL:8MP_LITE(4*8fps),5MP(4*6fps),5MP_LITE(4*10fps),4MP(4*8fps),4MP_LITE(4*15fps),3MP(4*9fps),3MP_LITE(4*18fps),1080P(4*15fps),720P(4*25fps),960H(4*25fps)
  • NTSC:8MP_LITE(4*8fps),5MP(4*6fps),5MP_LITE(4*10fps),4MP(4*8fps),4MP_LITE(4*15fps),3MP(4*9fps),3MP_LITE(4*18fps),1080P(4*15fps),720P(4*25fps),960H(4*25fps)
  • LITE Mode:
  • PAL:5MP_LITE(4*10fps),4MP_LITE(4*15fps),3MP_LITE(4*18fps),1080N(4*25fps),720P(4*25fps),960H(4*25fps)
  • NTSC:5MP_LITE(4*10fps),4MP_LITE(4*15fps),3MP_LITE(4*18fps),1080N(4*25fps),720P(4*25fps),960H(4*30fps)
  • Pure IP(H.265):
  • PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@16×25fps,960P@16×25fps,720P@16×25fps,D1@16×25fps
  • NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@16×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps
  • Record Mode    Manual\Timer\Motion Detection\Alarm\Intelligent

Playback & Backup

  • Decode Capability    2*1080P@30fps
  • Sync Playback    Normal Mode:
  • Pure Analog: 4CH 5M@6fps, 3CH 8M_LITE@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 3CH 1080P@15fps
  • Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
  • Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps,  2CH 1080P@30fps

LITE Mode:

  • Pure Analog:4CH 5M_LITE@10fps,CH 4M_LITE@15fps,3M_LITE@18fps,4CH 1080N@25fps
  • Mix Mode:  1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps
  • Pure IPC:  1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps,  2CH 1080P@30fps
  • Remote Playback    4 Channel / 1Channel
  • Search Mode    ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions    Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
  • Smart Phone Playback    4 Channel
  • Backup Mode    USB Device(with fomat FAT 32 )/Network/FTP

Network

  • Interface    1 RJ45 10M/100M Adaptive Ethernet Interface
  • Network Functions    TCP/IP, IPv4/IPv6, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP
  • DDNS    Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
  • Web Browser    Edge, Google Chrome , Firefox ,Safari
  • CMS Software    Support  Windows 10/Windows 11/MAC OS
  • Extra Stream    CIF(1-30fps)/D1(1-15fps)
  • Smart Phone    iPhone, Android
  • Hard Disk Driver
  • Interface Type    1 SATA Interface
  • Capacity    1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB)

General

  • Language    Simplified Chinese,Traditional Chinese, English, Polish, Czech, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Ukrainian
  • UTC Control    YES
  • USB Interface    2 USB 2.0 Interfaces
  • Power consumption    DC 12V/1.5A  ≤ 7W (without HDD)
  • Working Environment    -10~55℃/10~90%
  • Dimension (W×D×H)    260*230*43(mm)
  • Weight    1.07kg (Without HDD)
