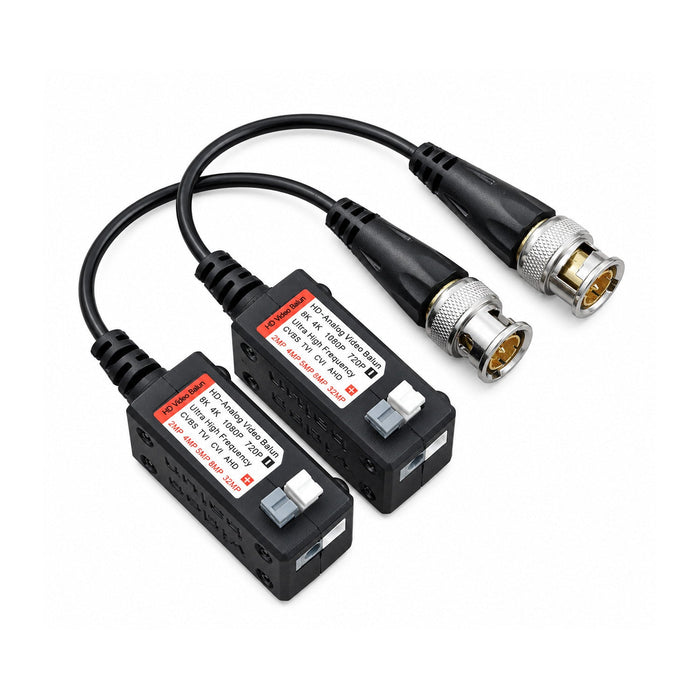

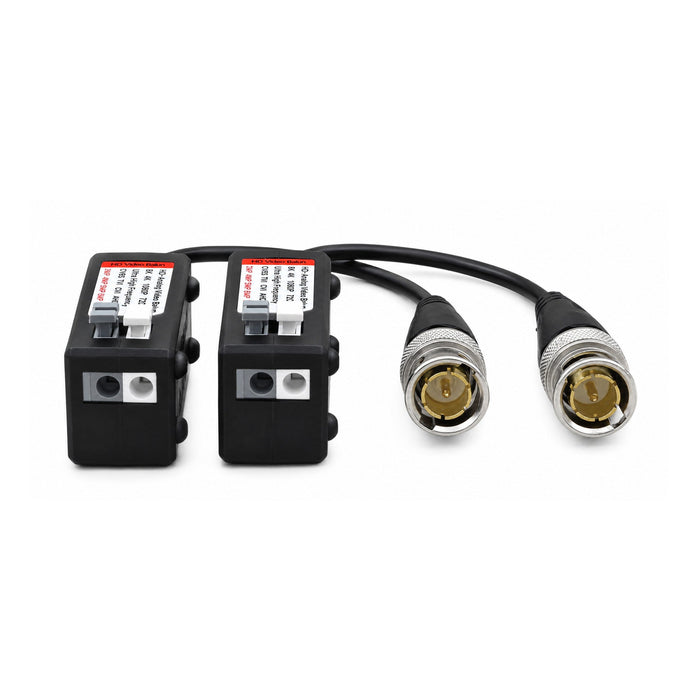

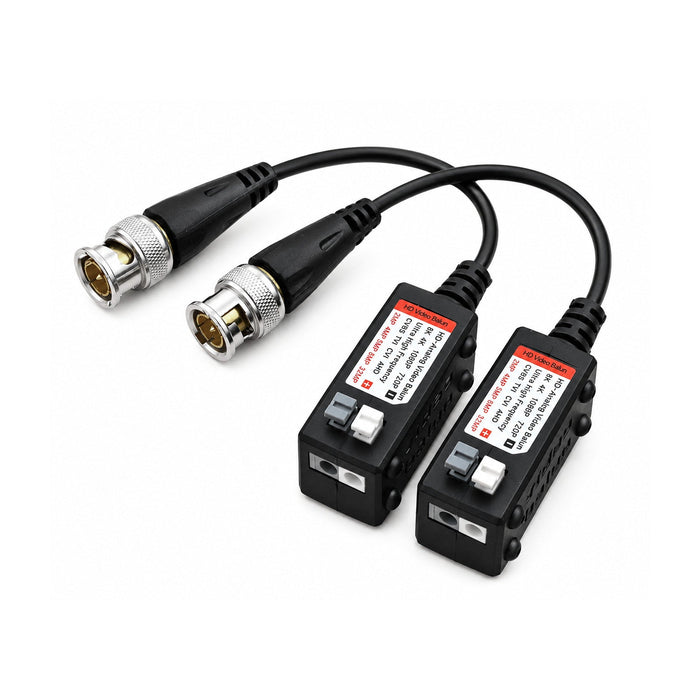

8K Passive HD Video Balun 32MP, Stackable Push-In BNC to UTP CCTV Transceiver

8K Passive HD Video Balun 32MP, Stackable Push-In BNC to UTP CCTV Transceiver
Availability:
in stock, ready to be shipped
SKU COT-VBHD-01P-8K

32MP 8K Passive HD Video Balun, Stackable Push-In BNC to UTP CCTV Transceiver for EX-SDI, AHD, TVI, CVI and CVBS Cameras, Supports 8K 4K 1080P 720P

Upgrade your CCTV installation with this 32MP 8K Passive HD Video Balun, designed to deliver clear and reliable video using twisted-pair network cable. It works with a wide range of analog and digital CCTV camera formats and supports video resolutions from 720P through 8K. The push-in connector makes wiring quick and convenient, while the stackable interlock design keeps multi-camera installations neat and organized. No external power is required, and built-in surge protection and interference rejection help provide dependable performance for home, business, and professional surveillance systems.

  • Supports HD CCTV video up to 8K and 32MP
  • Compatible with EX-SDI, TVI, CVI, AHD, and CVBS systems
  • Passive operation with no external power required
  • Quick and convenient push-in cable connection
  • Stackable design keeps multi-camera installations organized
  • Built-in protection against surges and signal interference
  • Suitable for home, commercial, and professional CCTV systems
  • Supports long-distance video transmission over twisted-pair cable
  • Expandable for 4, 8, 16, or 32-channel installations
  • Compact design for clean and space-saving installation

Specifications

  • Product Type: Passive HD video balun transmitter and transceiver
  • Application: CCTV and analog HD security camera systems
  • Maximum Supported Resolution: 8K
  • Maximum Supported Camera Resolution: 32MP
  • Supported Video Resolutions: 720P, 1080P, 4K, and 8K
  • Supported Megapixel Ratings: 2MP, 4MP, 5MP, 8MP, and 32MP
  • Supported Video Formats: EX-SDI 1.0, HD-TVI, HD-CVI, AHD, and CVBS
  • Camera/DVR Connection: BNC connector
  • Twisted-Pair Connection: Push-in cable terminal
  • Operating Type: Passive, no external power required
  • Design: Interlocking and stackable
  • Channel Configurations: 4, 8, 16, or 32 channels
  • EX-SDI 1.0 Maximum Distance: Up to 328 ft or 100 m
  • HD-TVI Maximum Distance: Up to 820 ft or 250 m
  • HD-CVI Maximum Distance: Up to 984 ft or 300 m
  • AHD Maximum Distance: Up to 984 ft or 300 m
  • 1080P Maximum Distance: Up to 656 ft or 200 m
  • 4K Maximum Distance: Up to 656 ft or 200 m
  • 8K Maximum Distance: Up to 328 ft or 100 m
  • Surge Protection: Built-in TVS
  • Coaxial Connector Surge Protection: Up to 2 kV
  • UTP Connector Surge Protection: Up to 2/4 kV
  • Interference Protection: Built-in interference rejection
  • TVI Wiring Requirement: Uses one twisted-pair wire for the video connection

Installation note: Maximum transmission distance can vary depending on cable quality, camera format, resolution, connectors, installation conditions, and nearby electrical interference. Use quality solid-copper twisted-pair cable for the most reliable performance.
