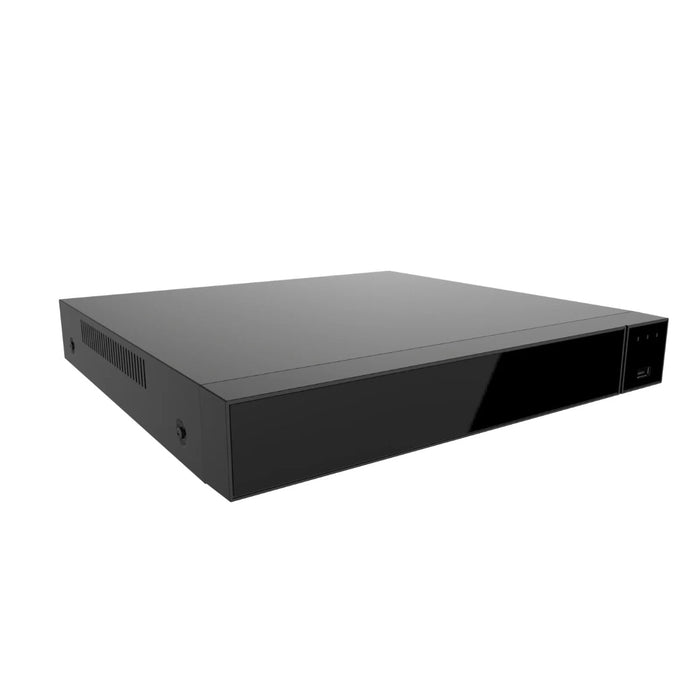

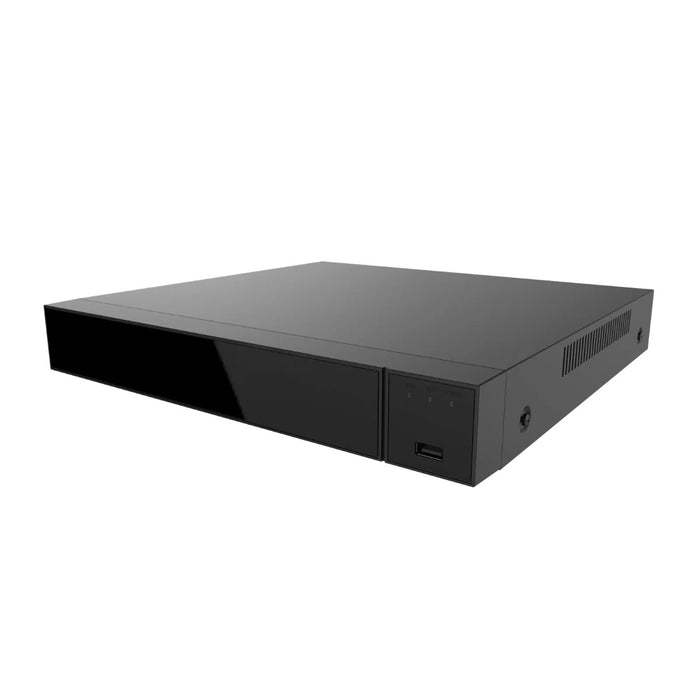

16-Channel DVR 16CH Hybrid 8MP Digital Video Recorder XR-8216N, no HDD

16-Channel DVR 16CH Hybrid 8MP Digital Video Recorder XR-8216N, no HDD
Availability:
Low stock
SKU CST-XR-8216N

16-Channel NVR 16CH Hybrid 8MP Digital Video Recorder XR-8216N, (No HDD inlcuded)

16CH Hybrid 8MP Digital Video Recorder, 5 in 1: TVI, AHD, CVI, Analog, IP (IPC up to 16CH), Video Input: 16HD+8IPC, 32CH/IPC; IPC Input: IPC/32CH; HD Input: 8M-N@6fps, 5M-N@12.5fps, 5M@6fps, 2MP@15fps, 1 SATA, HD output, VGA, USB, Audio, Alarm, RS485, Network, P2P

Specifications

System

  • Main Processor    MC6680
  • Operating System    Embedded LINUX

Video

  • Input    Normal Mode:
  • Default: 16*(AHD/TVI/CVI:8MP; TVI/AHD: 5MP;  AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P;  Analog: 960H)+8*network(Max 8MP)
  • Analog+Network: 2*Analog(8MP)+22*network(Max 8MP),4*Analog(8MP)+20*network(Max 8MP),6*Analog(8MP)+18*network(Max 8MP)
  • ,8*Analog(8MP)+16*network(Max 8MP),10*Analog(8MP)+14*network(Max 8MP),12*Analog(8MP)+12*network(Max 8MP),14*Analog(8MP)+10*network(Max 8MP),16*Analog(8MP)+8*network(Max 8MP)
  • Network: 32*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤160M)
  • Input    16CH BNC
  • Signal Type    Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
  • Output    1HD,1 VGA, 1 CVBS

Audio

  • Input    6 ChannelRCA,support AOC
  • Two-way Audio    NO
  • Output    1 Channel RCA
  • Alarm
  • Sensor Input    4
  • Output    1
  • Motion Detection    16 Channel
  • Trigger Events    Recording,  Email, Screen tips, Buzzer, Push notifications(motion detection)
  • Email Alarm    Send Image to The Designated E-mail

AI Function

  • Human Detection    YES

PTZ

  • Interface    RS485
  • Protocol    Pelco-D, Pelco-P
  • Baud Rate    110~921600
  • Address    0~255

Display

  • VGA    Resolution:1920 × 1080P, 1280 × 1024 , 1280 × 720,1024 × 768
  • HD Output    Resolution:4K,1920×1080,1280×1024,1280×720,1024×768
  • Display Split    1/4/6/9/16/25/36
  • Privacy Masking    3 Rectangular Zones (Each camera)
  • OSD    Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

  • Video Compression    H.265/H.265+/H.264/H.264+
  • Audio Compression    G.711u/G.711a
  • Resolution    5MP(2560×1952),8MP_LITE(1920×2160),5MP_lite(1280×1952),1080P(1920×1080),720P(1280×720),960H(960×480)
  • Video Quality    Lowest/Low/Ordinary/Good/Better/Best
  • Record Rate    Analog:  PAL: 8MP_LITE(1920×2160 16*8fps),5MP(2592×1944 16*6fps),5MP_Lite(1280×1952 16*10fps),1080P(1920×1080 16*15fps)
  • NTSC:8MP_LITE(1920×2160 16*8fps),5MP(2592×1944 16*6fps),5MP_Lite(1280×1952 16*10fps),1080P(1920×1080 16*15fps)
  • Pure IP(H.265):
  • PAL :8MP@20x25fps, 5MP@32x25fps,4MP@32x25fps,
  • 3MP@32x25fps, 1080P@32x25fps, 960P@32x25fps, 720P@32x25fps, NTSC:8MP@20x30fp, 5MP@32x30fps,4MP@32x30fps, 3MP@32x30fps, 1080P@32x30fps, 960P@32x30fps, 720P@32x30fps, D1@32x30fps
  • Record Mode    Manual\Timer\Motion Detection\Alarm

Playback & Backup

  • Decode Capability    8*1080P@30fps
  • Sync Playback    Pure Analog:  16CH 8MP_LITE@8fps,16CH 5MP@6fps,16CH 5MP_Lite@10fps,16CH 1080P@15fps, 16CH 720P@15fps,16CH 960H@30fps
  • Mix Mode: 2CH 4K@30fps,3CH 5M@30fps, 4CH 4M@30fps,5CH 3M@30fps, 8CH 1080P@30fps,16CH 5M@6fps,15CH 8M_LITE@8fps,16CH 1080P@15fps
  • Pure IPC:2CH 4K@30fps,3CH 5M@30fps, 4CH 4M@30fps,5CH 3M@30fps, 8CH 1080P@30fps
  • Remote Playback    4 Channel / 1Channel
  • Search Mode    ALL, Channel, Manual, Time, Date, Motion Detection,Alarm,Tag
  • Playback Functions    Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
  • Smart Phone Playback    4 Channel
  • Backup Mode    USB Device(with fomat FAT 32 )/Network/FTP

Network

  • Interface    1 RJ45 10M/100M Adaptive Ethernet Interface
  • Network Functions    TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
  • DDNS    Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN,DYNAMIC_PLANET,EASY_PLANET
  • Web Browser    Edge,IE8-11, Google Chrome , Firefox ,Safari
  • CMS Software    Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
  • Extra Stream    CIF/D1(1-30fps)
  • Smart Phone    iPhone, ipad,  Android ,Android pad

Hard Disk Driver

  • Interface Type    2 SATA Interface
  • Capacity    2 SATA Hard Disk (2.5″/3.5″ SATA, Up to 16TB)

General

  • Language    Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese,
  • UTC Control    YES
  • USB Interface    2 USB 2.0 Interfaces
  • Power consumption    DC 12V/4A  ≤15W (Without Hard Disk)
  • Working Environment    -10~50℃/10~90%
  • Dimension (W×D×H)    310*295*46(mm)
  • Weight    3.5kg(Without HDD)
