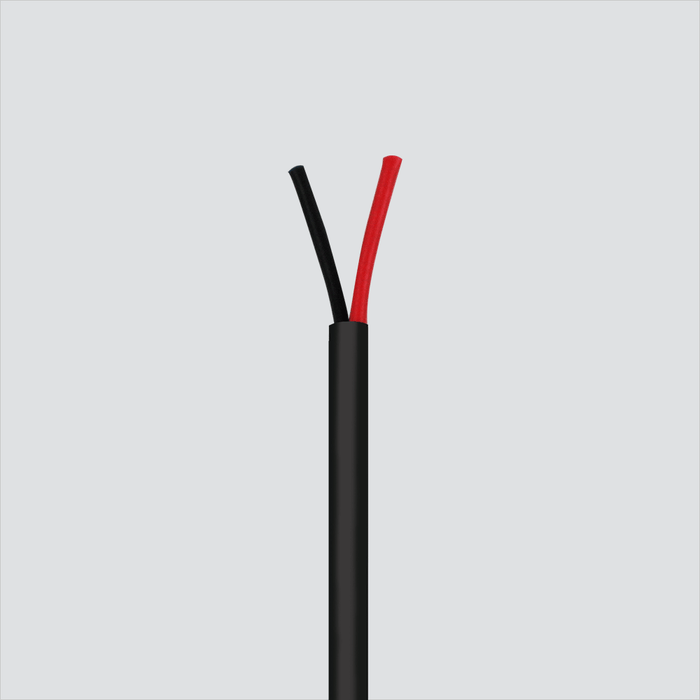

Wavenet AC1602UPBK4-500 500ft 16/2 OFC Speaker Wire Plenum CMP Rated Stranded Copper, Black

Availability:
in stock, ready to be shipped
SKU WAV-AC1602UPBK4-500

Wavenet AC1602UPBK4-500 16 AWG 2-Conductor OFC Plenum Speaker Wire Cable CMP Rated, Stranded Copper, Black, 500ft Reelex II Pull Box

16/2 OFC Plenum Speaker Wire Cable is designed for professional commercial and residential audio installations requiring CMP plenum-rated in-wall cable. This 500 ft Reelex II pull box contains two 16 AWG stranded oxygen-free copper (OFC) conductors for reliable signal transmission and flexible installation. The cable features a plenum polymer insulation and jacket, sequential footage markings for easy cable management, and a durable black jacket. It is c(ETL) Listed for CMP/CMR applications, compliant with TIA-568-C.2 and RoHS standards, and meets NEC Article 800 and FT6 requirements, making it suitable for speaker, paging, and other low-voltage audio system installations in plenum spaces.

  • Ideal for high-end commercial or residential in-wall rated audio (speaker) installations
  • 16 AWG with 2 insulated conductors made with Stranded Oxygen Free Copper
  • Sequential footage marking
  • c(ETL) Listed CMR/CMP
  • TIA-568-C.2
  • RoHS Compliant

Docs/Instruction Links

Specifications

  • Cable Type: Audio / Speaker Cable
  • Wire Gauge: 16 AWG
  • Conductors: 2 Conductors (16/2)
  • Conductor Material: Stranded Oxygen-Free Copper (OFC)
  • Conductor Construction: Stranded Bare Copper
  • Shielding: Unshielded
  • Cable Length: 500 ft
  • Jacket Color: Black

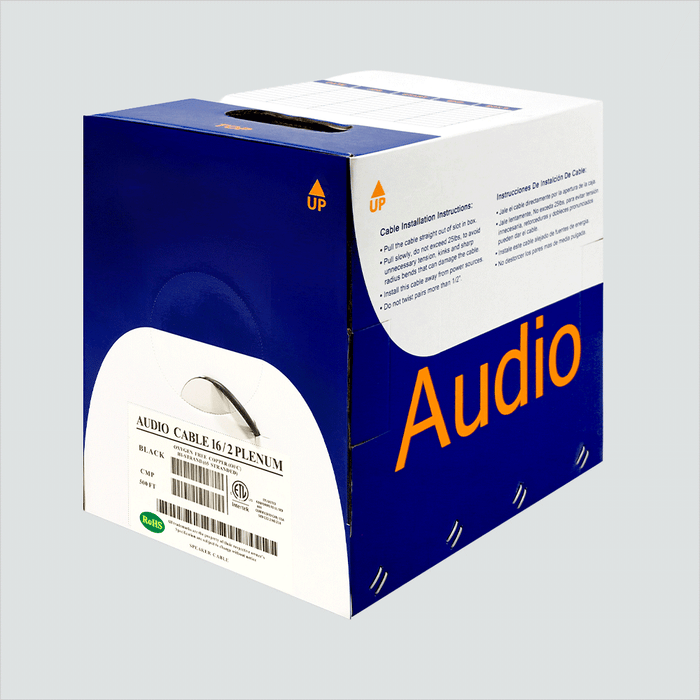

  • Packaging: Reelex II Pull Box
  • Insulation Material: Plenum Polymer
  • Jacket Material: Plenum Polymer
  • Plenum Rating: CMP (FT6)
  • Additional Rating: CMR
  • Sequential Footage Markings: Yes
  • Nominal Insulation Diameter: 0.072 in
  • Nominal Insulation Thickness: 0.007 in
  • Nominal Jacket Diameter: 0.175 in
  • Nominal Jacket Thickness: 0.015 in
  • Nominal Weight: 25 lbs per 1,000 ft
  • Application: In-Wall Commercial and Residential Audio Installations
  • Certification: c(ETL) Listed
  • Compliance: TIA-568-C.2
  • Compliance: RoHS
  • NEC Compliance: Article 800
  • Flame Rating: FT6
  • Suitable For: Speaker Systems, Paging Systems, and Low-Voltage Audio Applications
  • Category: Plenum-Rated Speaker Wire / Audio Cable
