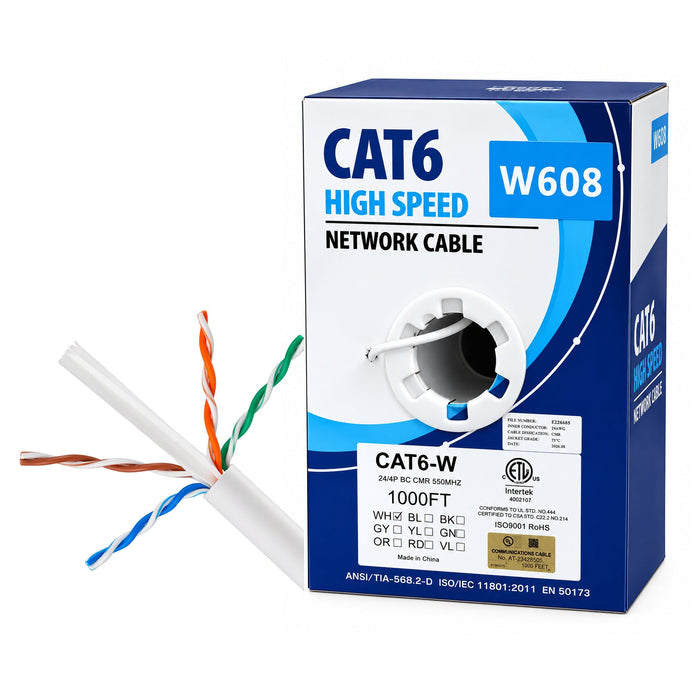

1000ft Cat6 Ethernet Cable 23AWG Solid Bare Copper CMR Rated 550MHz UTP Bulk Cable - White

Availability:
in stock, ready to be shipped
SKU ENS-CAT6-W

Cat6 Ethernet Cable 1000ft White - 23AWG Solid Bare Copper, CMR Rated, 550MHz, 10 Gigabit UTP Bulk Cable

Upgrade your network infrastructure with this high-performance Cat6 Ethernet Cable, designed for reliable data transmission in residential, commercial, and professional networking installations. Featuring 1,000 feet of 23 AWG solid bare copper conductors, this cable delivers superior conductivity, reduced signal loss, and dependable support for Power over Ethernet (PoE) applications. Engineered with HDPE insulation and an internal cross separator to minimize crosstalk and interference, it provides stable performance for high-bandwidth networking demands. Supporting frequencies up to 550MHz and speeds up to 10 Gigabit, this CMR-rated cable is ideal for in-wall and floor-to-floor runs in non-plenum environments. Packaged in a convenient pull box for smooth installation, it meets TIA/EIA-568C standards and is RoHS compliant, making it a dependable solution for data, voice, video, streaming, gaming, and business networking applications.

  • 1000-ft bulk Cat6 Ethernet cable in white
  • 23 AWG solid bare copper conductors for maximum performance
  • Supports up to 550MHz bandwidth and 10 Gigabit Ethernet speeds
  • PoE compatible for powering network devices
  • CMR (Riser) rated for in-wall and between-floor installations
  • Built-in cross separator reduces crosstalk and signal interference
  • HDPE insulation for improved signal integrity
  • UTP (Unshielded Twisted Pair) construction
  • Convenient pull box packaging for easy installation
  • Meets TIA/EIA-568C standards
  • RoHS compliant and ISO9001 certified
  • Ideal for data networks, IP cameras, VoIP phones, streaming, and gaming systems

Specifications

  • Category: Cat6 Ethernet Cable
  • Cable Length: 1,000 ft (305 m)
  • Cable Color: White
  • Cable Type: UTP (Unshielded Twisted Pair)
  • Conductor Material: Solid Bare Copper
  • Conductor Size: 23 AWG
  • Conductor Diameter: 0.54 mm ± 0.005
  • Number of Pairs: 4 Pairs
  • Color-Coded Pairs: White/Blue, White/Orange, White/Green, White/Brown
  • Insulation Material: HDPE (High-Density Polyethylene)
  • Insulation Diameter: 1.0 mm ± 0.03
  • Cross Separator: Yes
  • Jacket Material: PVC
  • Overall Cable Diameter: 6.0 mm ± 0.2
  • Bandwidth: Up to 550 MHz
  • Data Rate: Up to 10 Gigabit Ethernet
  • PoE Support: Yes
  • Flame Rating: CMR (Riser Rated)
  • Application Rating: In-Wall and Between-Floor Installations
  • Standards Compliance: TIA/EIA-568C
  • RoHS Compliant: Yes
  • ISO9001 Certified: Yes
  • Testing Standard: TIA/EIA-568C Channel Test (100 m)
  • Packaging Type: Pull Box
  • Pull Box Length: 1,000 ft (305 m)
  • UL File Number: E513326
  • Cable Marking: UTP CAT6 BC 4 Pairs 23AWG 550MHz
  • Recommended Uses: Networking, PoE Devices, IP Cameras, VoIP, Streaming, Gaming, and Data Applications
