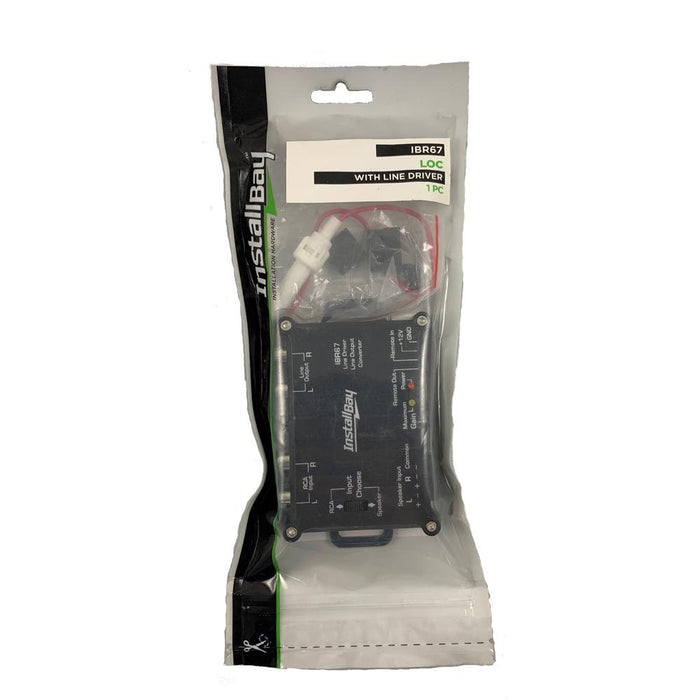

Install Bay IBR67 2 Channel Line Driver / Line Output Converter by Metra
•Low Output Impedance
•High Input Impedance
•Flat Frequency Response
•High Output Voltages
•Excellent Signal To Noise Ratios
•Panel Mount RCA's
•Poly Caps And Low Tolerance Resistors In All Signal Path Circuits
•Power ON LED
•Removable Terminal Blocks For All Input Connections

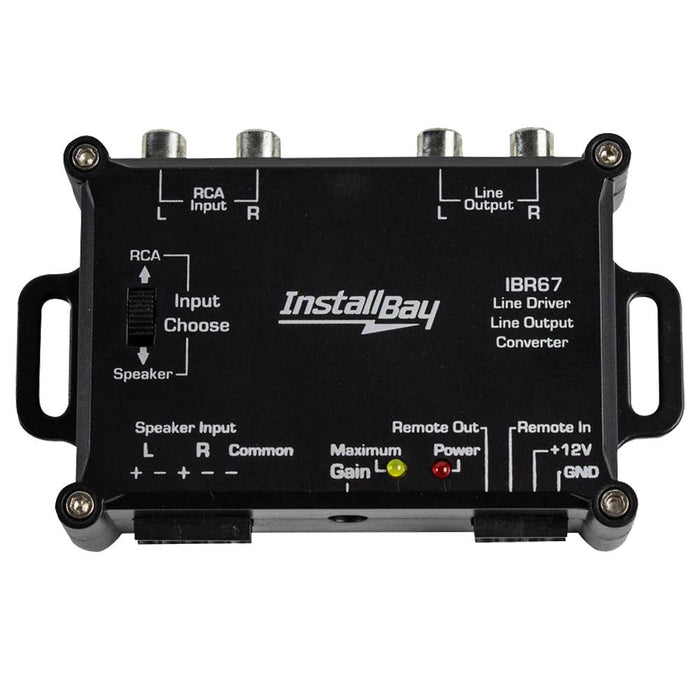

*Power Connections-These connections are for input power, chassis ground,
and remote turn-on. Use a minimum of 18 gauge wire for power and ground
connections. The power wire should be fused with a 1 amp fuse.
*RCA Outputs- These RCA ouput jacks provide signal to your amplifer.
*Low Level Inputs- These RCA input jacks allow for a low level left and right
channel signal input from the source unit.
*Input Switch Selector- This switch is used to select the input of the IBR67.
There are two possible inputs, The RCA position selects the low level RCA
input (0-4V) and the Speaker position selects the high level input.
*High Level Inputs- This terminal block allows for a high level left and right
channel signal input from the source unit. Use this if your source unit does
not have RCA outputs.
*Input Gain Adjustment- This control matches the input level of your IBR67
with the output level of your source unit.
*Maximum Indicator- This LED indicates when the signal is at its maximum
level before distortion occurs. When the input "Gain" adjustment is set
correctly and the source unit is at its maximum volume this LED should
flicker intermittently.
*Power Indicator- This LED indicates when the IBR67 is powered on
