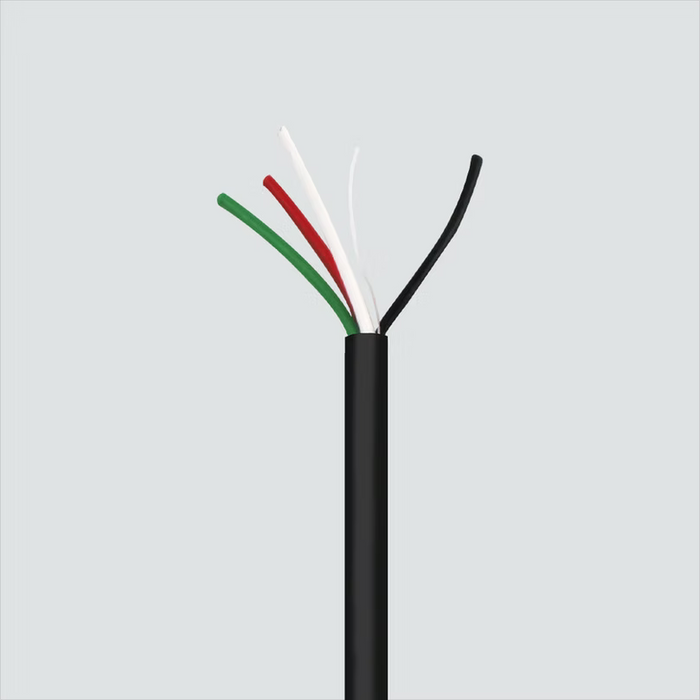

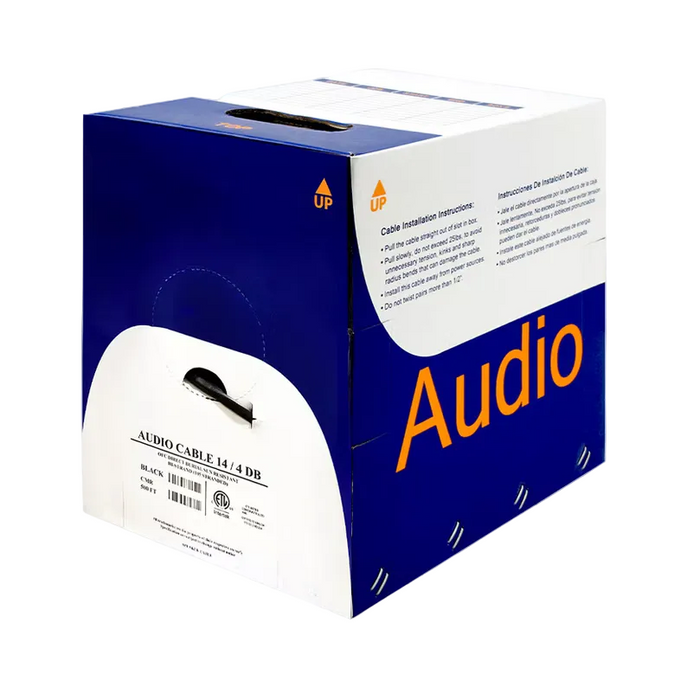

Wavenet AC1404OSPBK3-500 14AWG 4 Conductors (65) Glossy PVC Audio Cable RIB (Reel-In-Box) 500Feet -Black

Wavenet AC1404OSPBK3-500 14AWG 4 Conductors (65) Glossy PVC Audio Cable RIB (Reel-In-Box) 500Feet -Black
Availability:
Out of stock
SKU WAV-AC1404OSPBK3-500
Sold out

Wavenet AC1404OSPBK3-500 14AWG 4 Conductors (65) Glossy PVC Audio Cable RIB (Reel-In-Box) 500Feet -Black

  • Ideal for high-end commercial or residential in-wall rated audio (speaker) installations
  • 14 AWG with 4 insulated conductors made with Stranded Oxygen Free Copper
  • Sequential footage marking
  • Direct Burial Outdoor
  • c(ETL) Listed CMR/CMP
  • TIA-568-C.2
  • RoHS Compliant

Docs/Instruction Links

Specifications

  • Conductor  - Oxygen Free B
  • Number of Conductor -  4
  • AWG - 14
  • Stranding -  105
  • Diameter - 0.0063 (inches)
  • Insulation Material - PVC
  • Diameter - 0.1023 (inches)
  • Nominal Wall - 0.0102 (inches)
  • Jacket Material - FR-PVC
  • Overall Diameter - 0.3149 (inches
  • Nominal Thickness - 0.0236 (inches
  • Paper Tape - YES
  • Rip Cord - YES
  • Conductor Resistance - 10 (ohms/1000m
  • Voltage - 300 (volts)
  • Nominal Weight - 42 (pounds)
