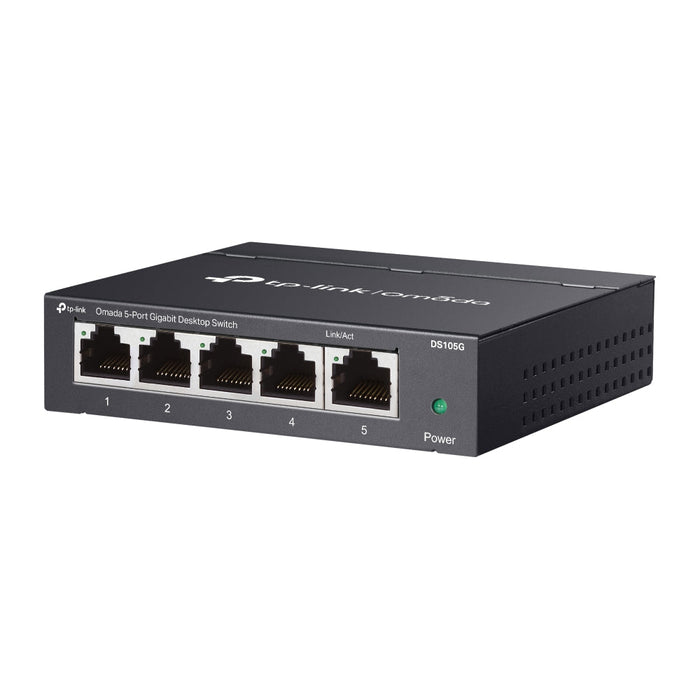

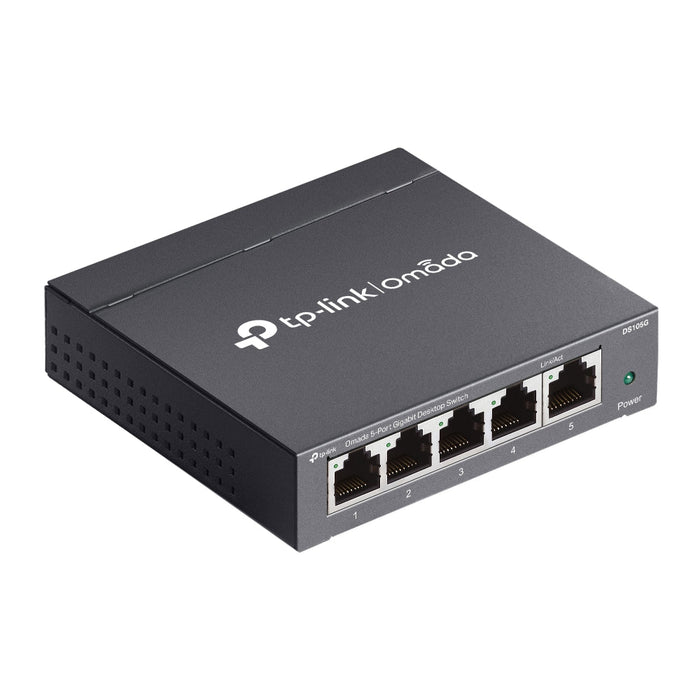

TP-Link Omada DS105G 5-Port Gigabit Unmanaged Desktop Switch RJ45 Ports Plug and Play

TP-Link Omada DS105G 5-Port Gigabit Unmanaged Desktop Switch RJ45 Ports Plug and Play
Availability:
in stock, ready to be shipped
SKU TPL-DS105G

TP-Link Omada DS105G 5-Port Gigabit Unmanaged Desktop Switch RJ45 Ports Plug and Play

Prevent Your Switches Network Loops

Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.

QoS for a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video.

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

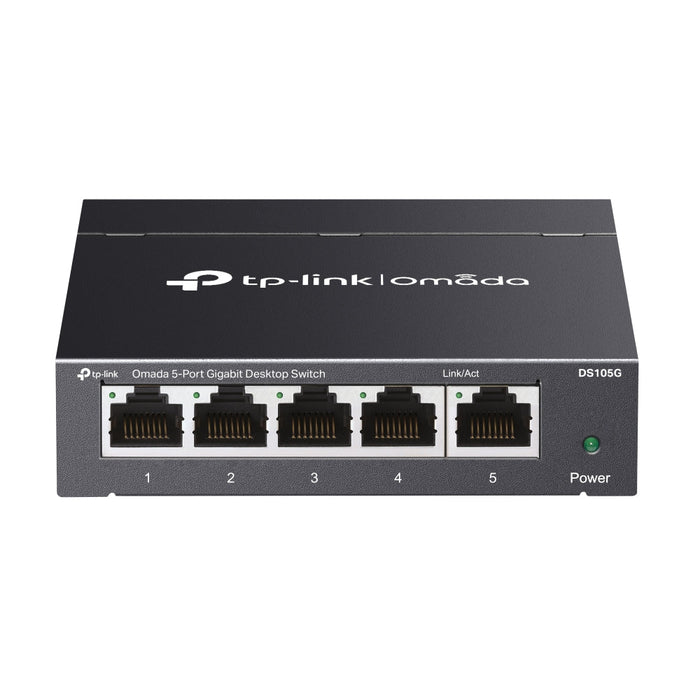

  • 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Plug and play, no configuration needed, and no management required
  • Supports 802.1p/DSCP QoS and IGMP Snooping functions

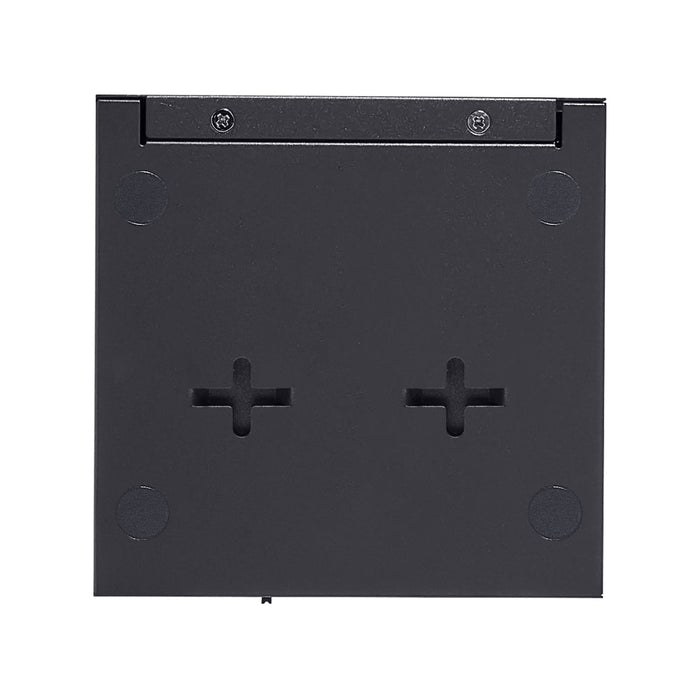

  • Durable metal casing, desktop/wall-mounting options, and a fanless design
  • IEEE 802.3x flow control provides reliable data transfer
  • Green Ethernet technology reduces power consumption
  • Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping

Docs/Instruction Links

Specifications

HARDWARE FEATURES

Standards and Protocols

  • IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface

  •  5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

  • Fanless

External Power Supply

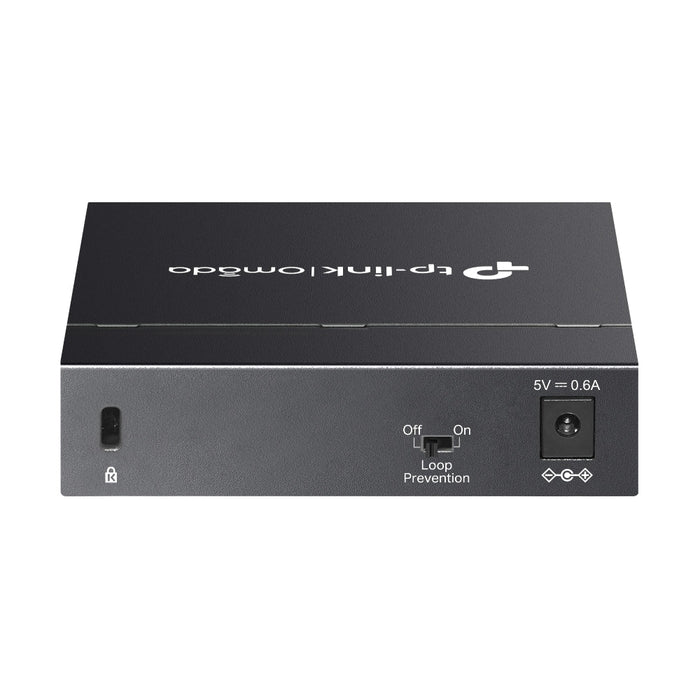

  • External Power Adapter (Output: 5 V DC / 0.6A)

LED

  • Power
  • Link/Act indicators per port built into each RJ-45 port
  • Dimensions ( W x D x H )  -  3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
  • Max. Power Consumption   - 3.1 W (220 V/ 50 Hz)
  • Max. Heat Dissipation   - 10.57 BTU/h

PERFORMANCE

  • Packet Forwarding Rate   - 7.4 Mpps
  • MAC Address Table -   2K
  • Packet Buffer Memory  -  1 Mb
  • Jumbo Frame   - 16 KB

SOFTWARE FEATURES

Advanced Features

  • Green Ethernet technology
  • 802.3X Flow Control
  • 802.1P/DSCP QoS
  • IGMP Snooping
  • Loop Prevention

Transmission Method -   Store and Forward


OTHERS

Certification

  • CE, FCC, RoHS

Package Content

  • DS105G
  • Power Adapter
  • Installation Guide

Environment

  • Operating Temperature: 0–40 °C (32–104 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
