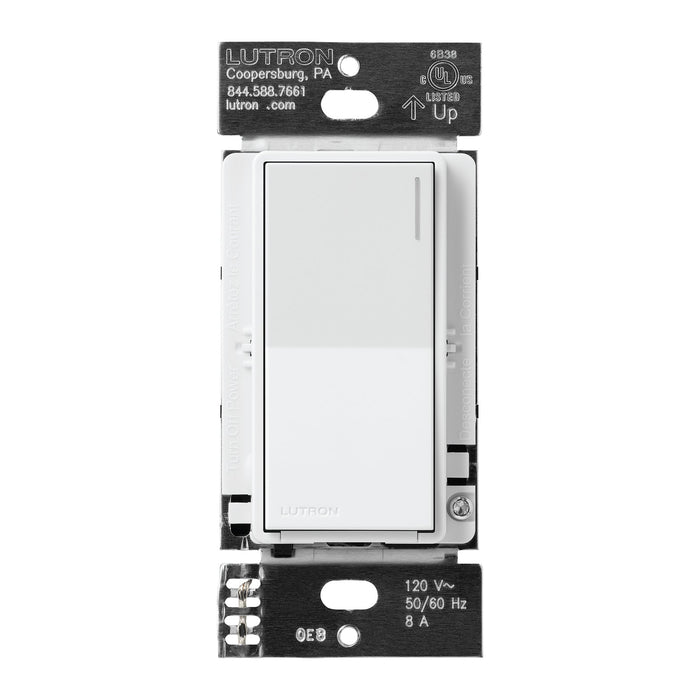

RRST-8ANS-WH Sunnata RF Neutral Switch for RA3 Systems, 8 Amp, 1 Pole/Multi-Location, Neutral Required, 120V, White
RadioRA 3 Sunnata local controls function much like standard dimmers and switches, but can be controlled as part of a lighting control system. Local lighting controls are useful in locations where single circuits of lighting need to be dimmed or switched.
RadioRA 3 Sunnata local controls include a locator light to assist in locating the controls at night. RadioRA 3 Sunnata local controls install in single pole or multi-location applications. Sunnata companion dimmers and companion switches must be used for multi-location control. RadioRA 3 Sunnata local controls include a Front Accessible Service Switch (FASS) for safe light bulb replacement.
- For non-dim applications including lighting and small motor loads
- Controls up to 8A lighting or 5.5A (1/4 HP) motor loads

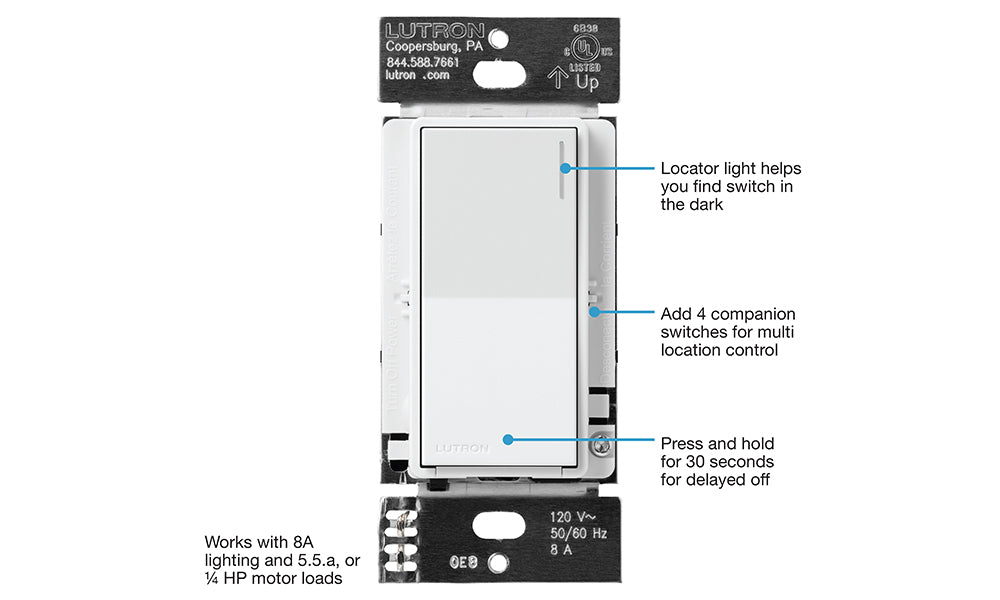

- Locator light glows softly to find switch in the dark
- Works with up to 4 companions for 5-location control
- Press and hold for 30-second delayed fade-to-off
- Coordinates with full Sunnata family for unified style
- Pressing the top of the button, lights or motors turn ON.
- Pressing the bottom of the button, lights or motors turn OFF.

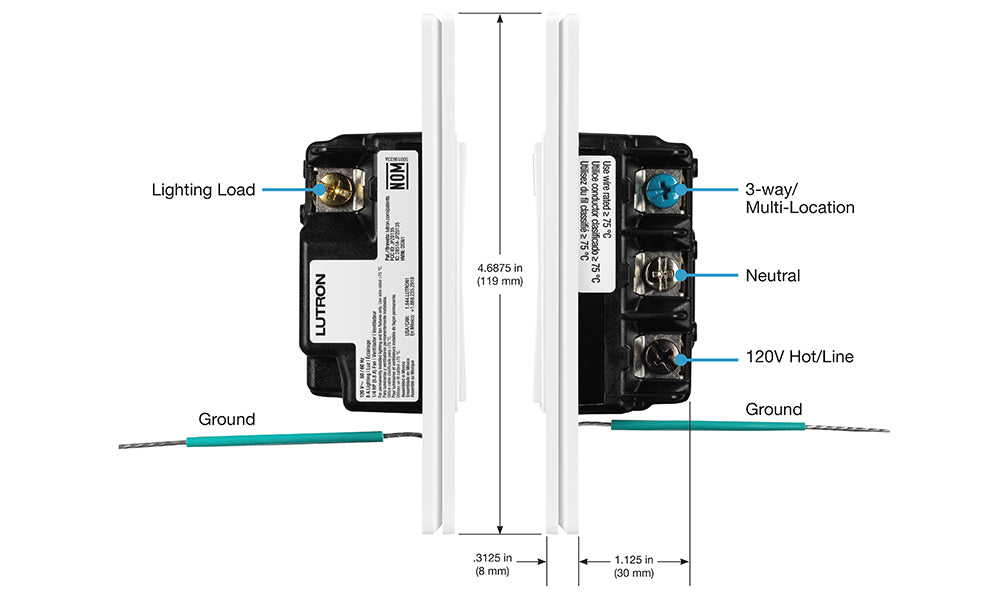

- Neutral is required. (Switch only)
- Pressing and holding the bottom of the button for more than 1 second - Delayed Off (30 second delay)
- Single pole or multi-location control
- Use Lutron Designer (Claro gloss or satin finish) wallplates or designer-style wallplates from other manufacturers. Wallplates are sold separately
- 120 V~ 50/60 Hz
- Lighting Load – 8 A
- Motor Load – 1/4 HP 5.8 A
