Klipsch DS-180CSM 8" 200W Max Power In-ceiling Speaker White (each)

Availability:
Low stock
SKU KLIP-DS-180CSM

Klipsch DS-180CSM 8" 200W Max Power In-ceiling Speaker White (each)

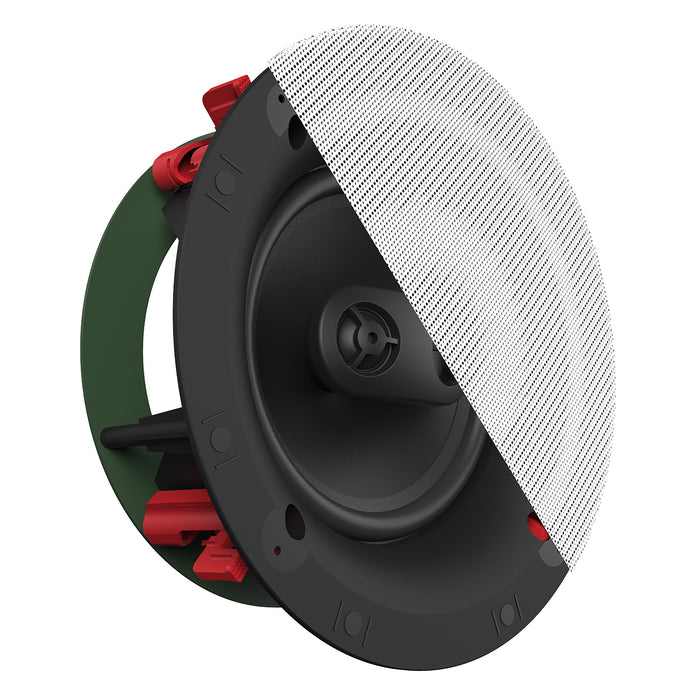

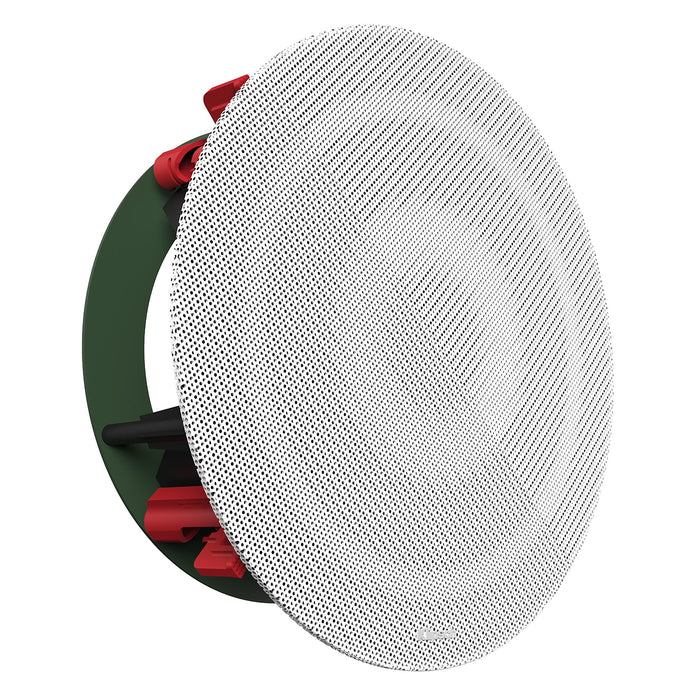

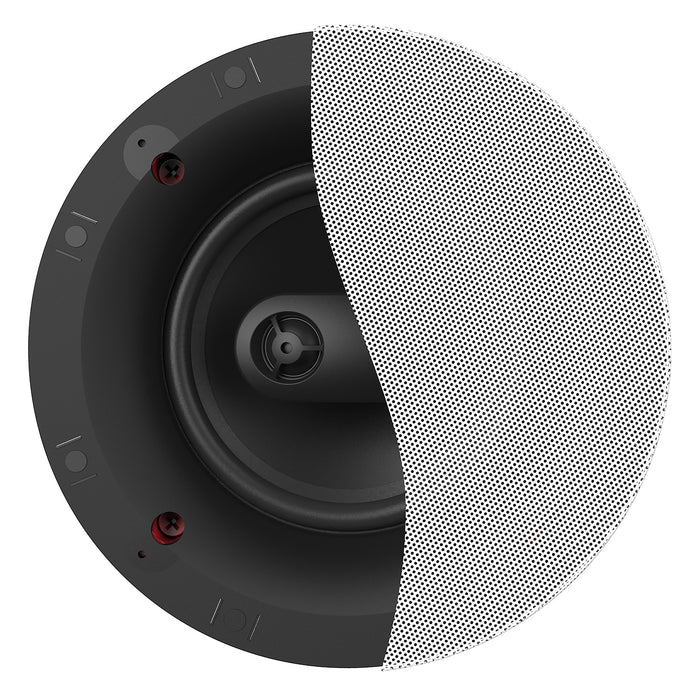

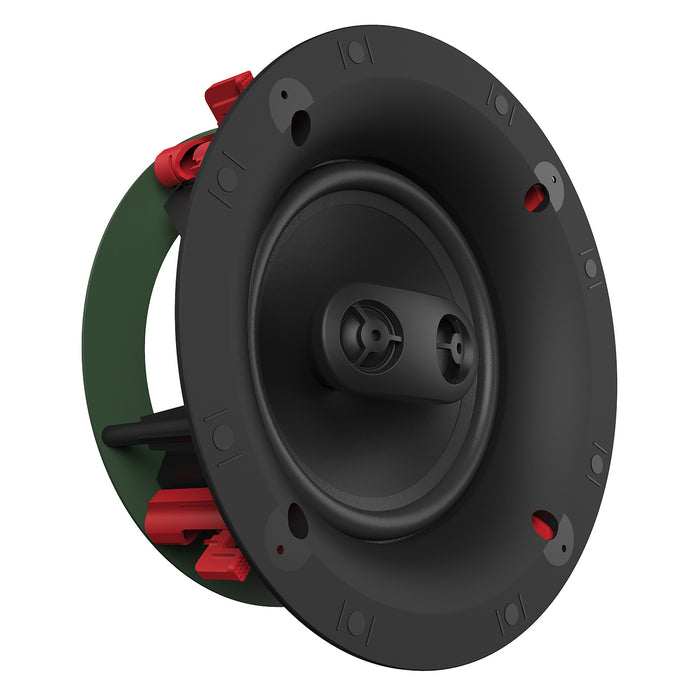

The Klipsch DS-180CSM is an 8" in-ceiling stereo speaker designed to deliver powerful, detailed audio in spaces where installing two speakers isn’t possible. Built with Klipsch’s signature acoustic voicing, it features a dual voice coil polypropylene woofer paired with two 0.75" silk dome tweeters for full, rich stereo sound from a single unit. Its exclusive Sky Hook® Cinch installation system allows fast, tool-free mounting—reducing install time by up to 75%—while the bezel-free, powder-coated magnetic grille provides a clean, seamless look that blends effortlessly into any room. With horn-loaded performance perfected since 1946, the DS-180CSM ensures crystal-clear audio with maximum efficiency and minimal distortion.

  • 8" polypropylene dual voice coil woofer

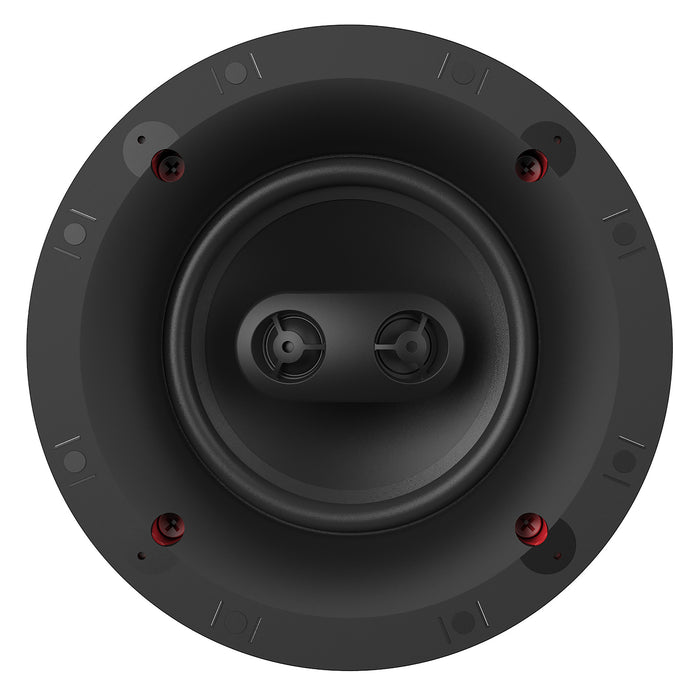

  • Dual 0.75" silk dome tweeters for true stereo output
  • Patented Sky Hook® tool-free Cinch installation system

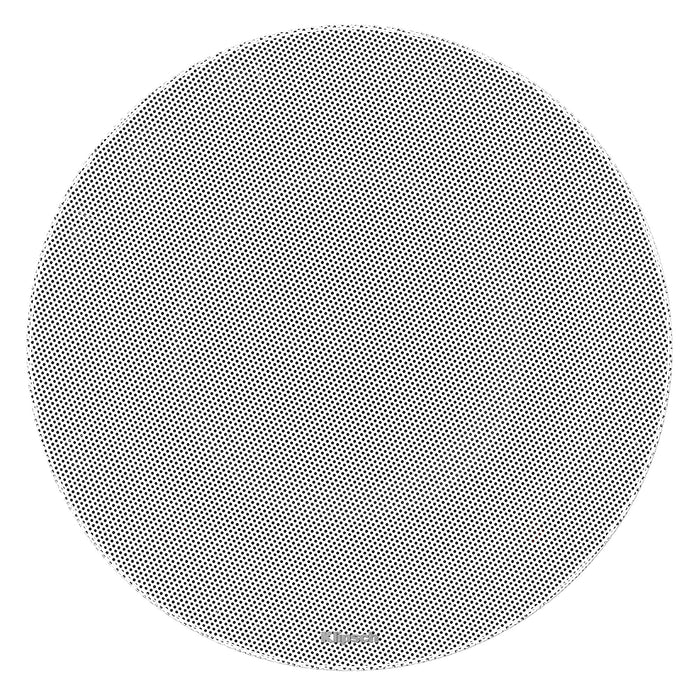

  • Bezel-free, powder-coated magnetic grille for seamless design
  • Signature Klipsch horn-loaded performance for clear, dynamic sound

Docs/Instruction Links:

Specifications:

  • Frequency Response: 73Hz – 20kHz (±3dB)
  • High Frequency Driver: Dual 0.75" silk dome tweeters
  • Low Frequency Driver: 8" polypropylene woofer
  • Sensitivity: 94 dB @ 2.83V / 1m
  • Coverage Angle: 160°
  • Power Handling: 50W RMS / 200W peak
  • Impedance: 4 ohms
  • Enclosure Type: ABS / infinite baffle
  • Finish: Black baffle and frame, white paintable grille
  • Product Dimensions: 10.75" x 10.75" x 4.5" (27.3cm x 27.3cm x 11.5cm)
  • Mounting Depth: 4.45" (11.3cm)
  • Cutout Size: 9.8" (24.9cm)
  • Product Weight: 7.4 lbs (3.36 kg)
  • Included: Flat paintable magnetic grille
  • Optional Installation Kit: IK-800-C II (sold separately)
  • Optional Fire-Rated Enclosure: ME-800-C (sold separately)
