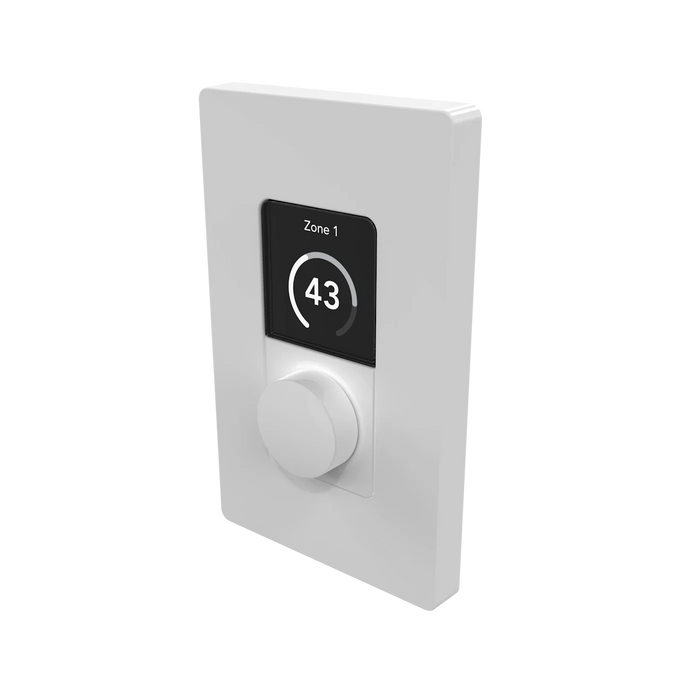

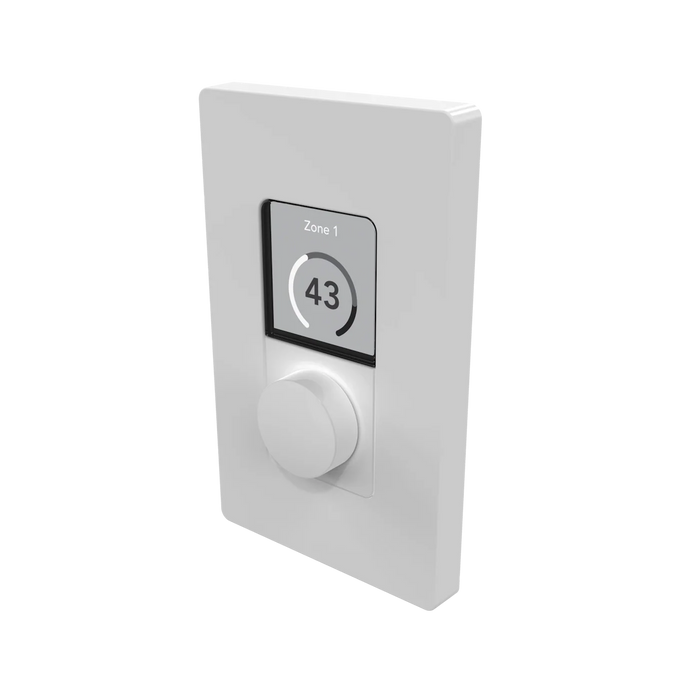

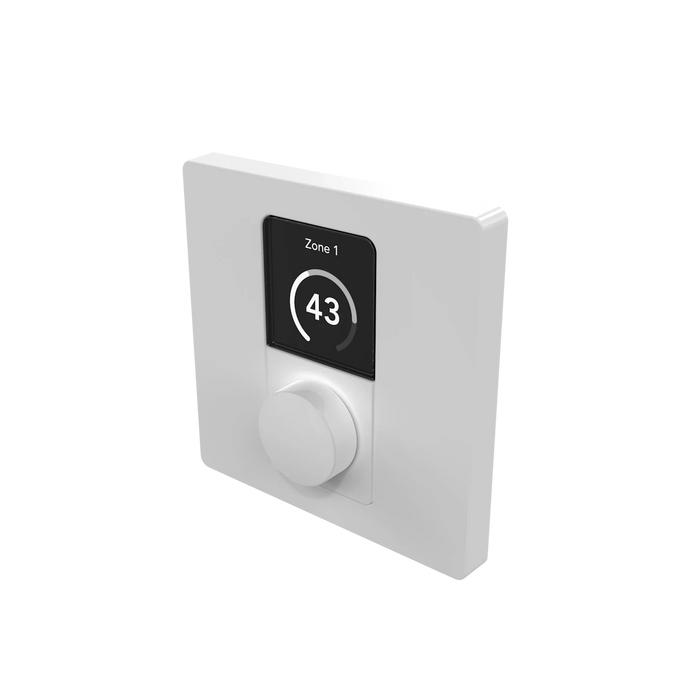

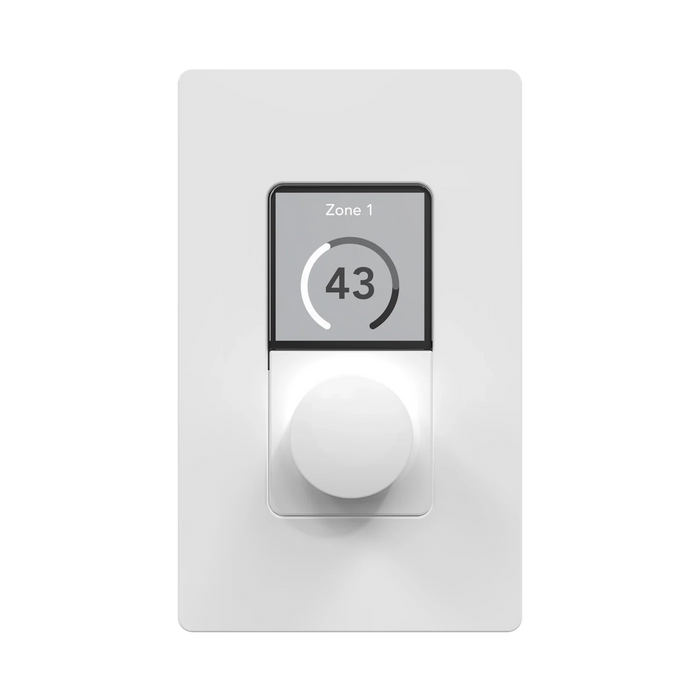

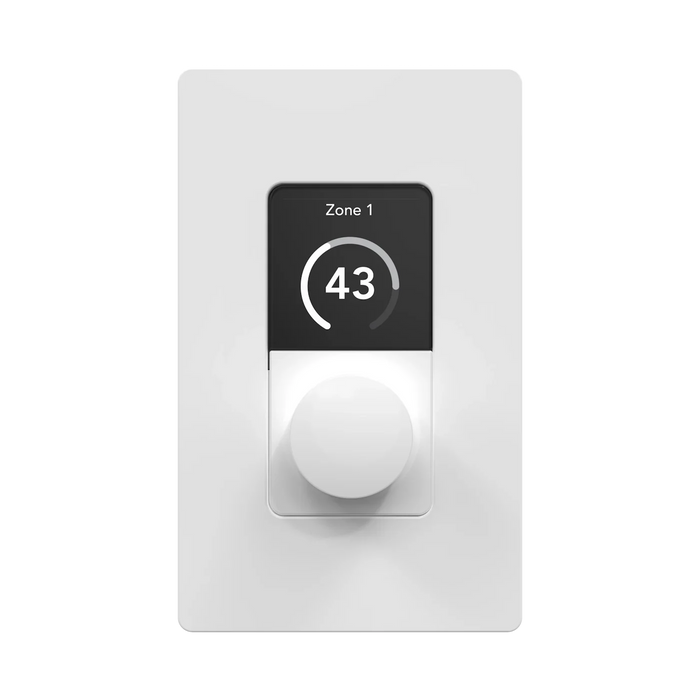

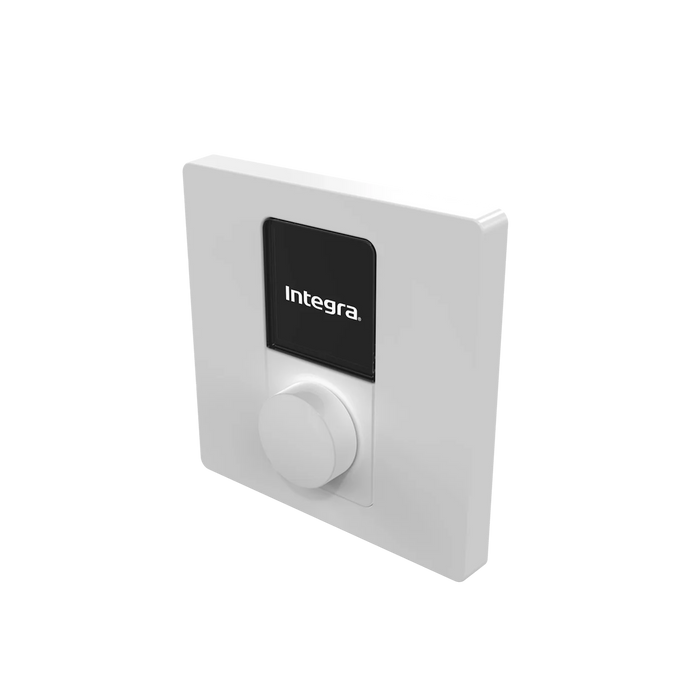

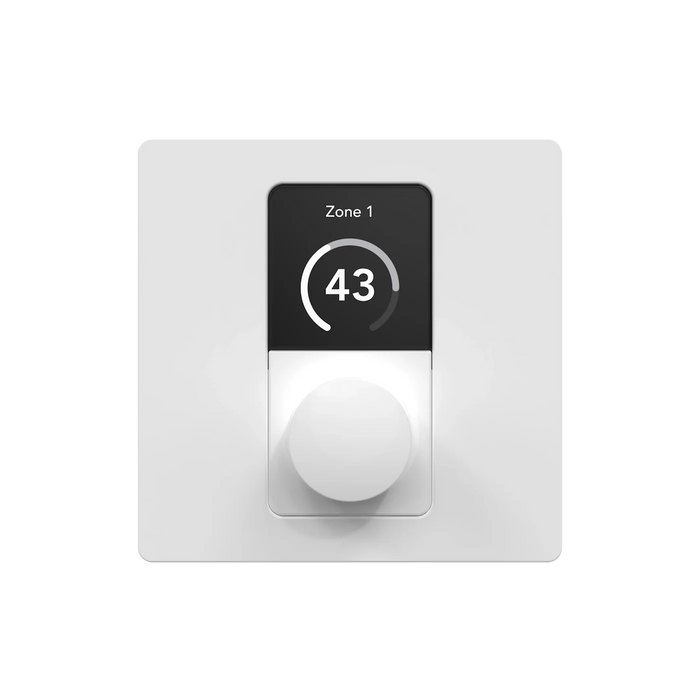

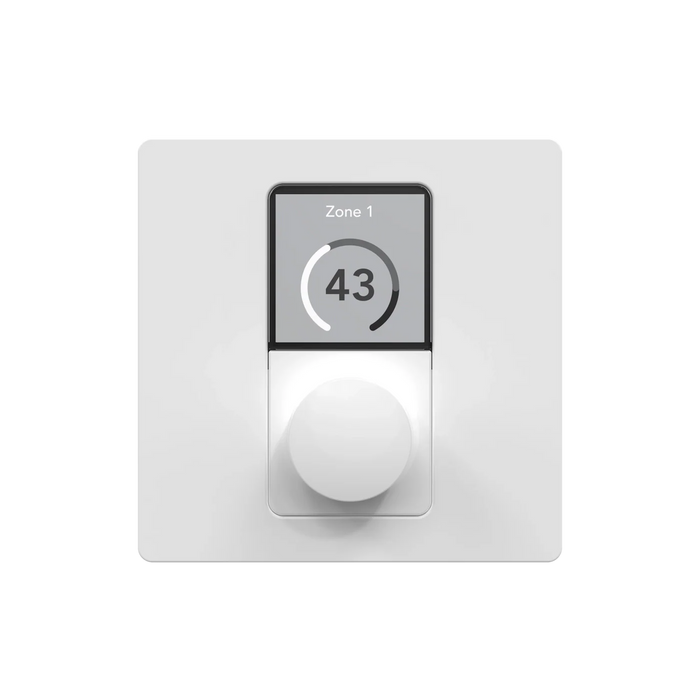

Integra ZC1 Wall Mount Zone Controller Compatible with all Integra Professional Amplifiers - White

Integra ZC1 Wall Mount Zone Controller Compatible with all Integra Professional Amplifiers - White
Availability:
Low stock
SKU INT-ZC1WCZC

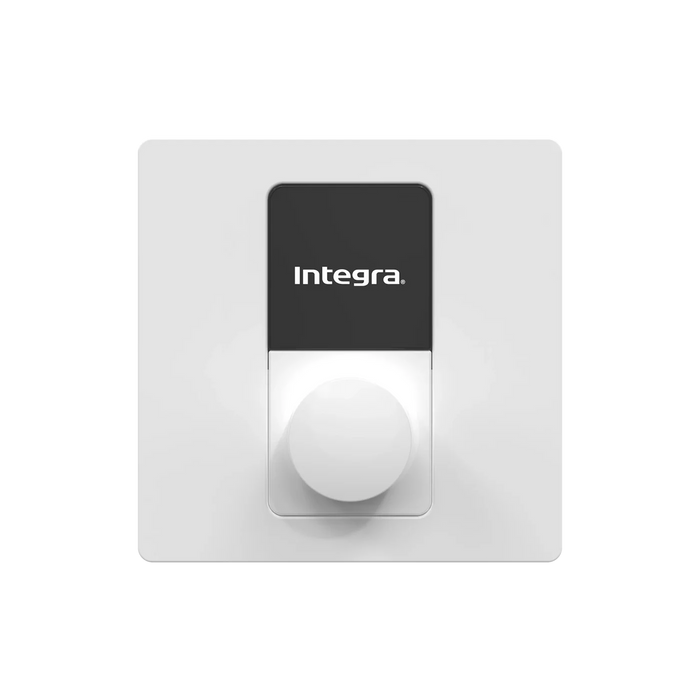

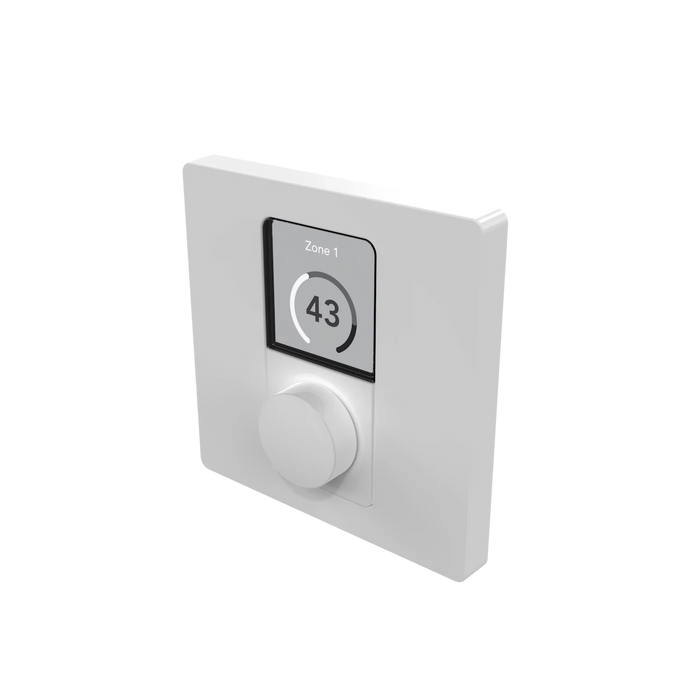

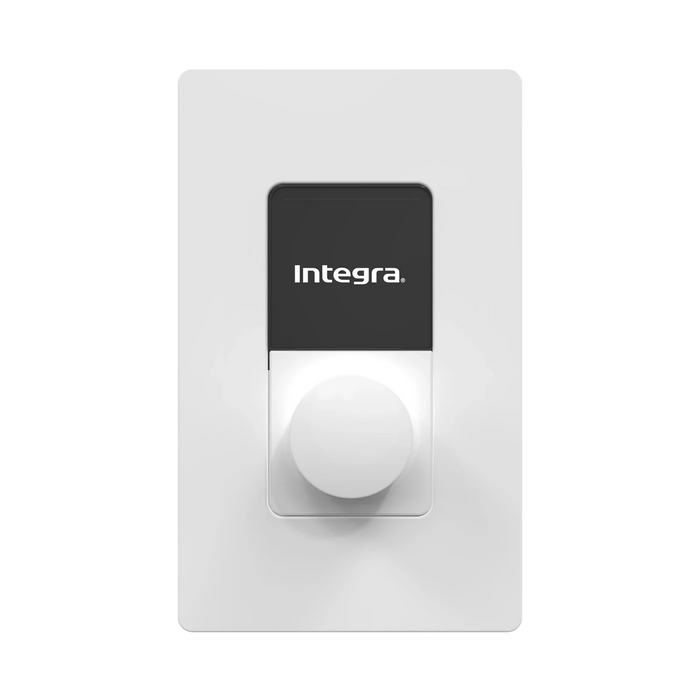

Integra ZC1 Wall Mount Zone Controller Compatible with all Integra Professional Amplifiers - White

The Integra ZC1 Zone Controller is an optional wall panel, compatible with all Integra Professional Amplifiers, that streamlines the user experience by providing real-time device syncing with intuitive design and a secure 4-digit passcode.

Docs/Instruction Links

Specifications

  • Operating Temperature Range 0-40°C (32-104°F)
  • Display Screen Dimension (excluding black border) 27.72mm x 27.72mm
  • Display Screen Area (excluding black border) 768.4sqmm
  • Display Screen Resolution 240 x 240 pixels
  • Display Screen Type RGB, Transmissive / Normally Black
  • Display Screen Material High gloss polished transparent acrylic
  • Exterior & Mechanical Parts Material Plastic (ABS-PC)
  • Base Construction & Shield Material Pre-galvanized steel
  • Power Consumption PoE Class 1 / 3.84 Wmax
  • Power Supply Power to the RJ45 Ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector
  • Standby Modes 6 settings available: 30 secs, 2 mins, 5 mins, 15 mins, 30 mins, 60 mins
  • Connection & Data Protocol RJ45, proprietary over CAT 5e (or faster STP)
  • Maximum Cable Length
  • (CAT 5e) 100m (328ft)
  • IP Rating IP 30
