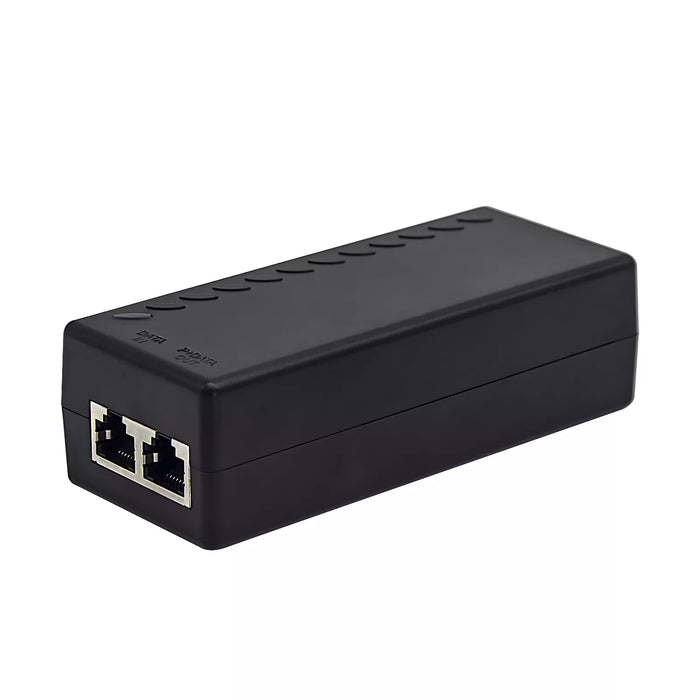

Mini Gigabit PoE Injector Adapter Single Channel 30W/15.4W up to 328ft Range

Availability:
in stock, ready to be shipped
SKU CON-POE-M911-N

Gigabit PoE+ Injector Adapter - 30W 48V Power Over Ethernet Plus - 10/100/1000Mbps, IEEE 802.3af/at Compliant - Up to 100 M (328 ft) Range

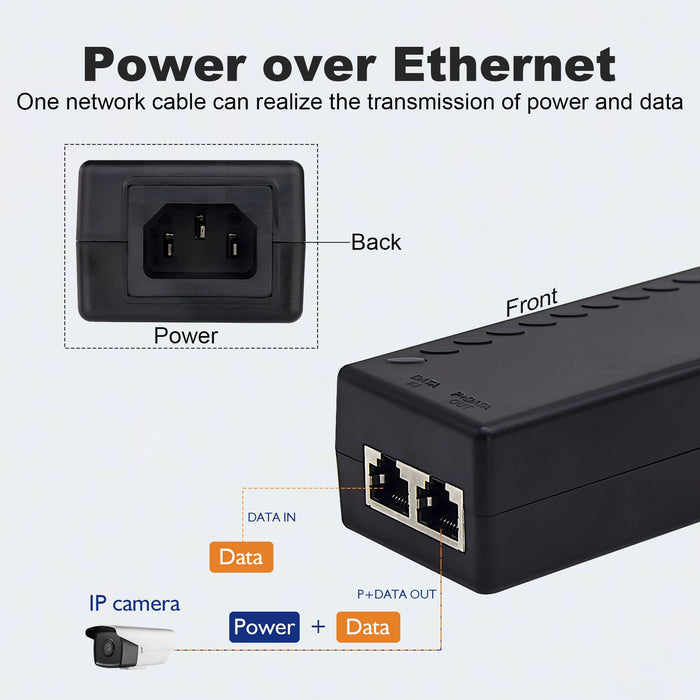

The PoE Injector is a compact, cost‑effective solution that converts standard 100–240V AC to low‑voltage DC and delivers it over existing Ethernet cabling to power IEEE 802.3af/at‑compliant devices.

It is ideal for remotely powering wireless LAN access points, IP security cameras, VoIP phones, and other low‑port‑density installations.

PoE mid‑spans eliminate the need for separate power supplies and associated AC/DC cabling at the endpoint, providing a compact, affordable, safe, and reliable power solution over your existing Ethernet infrastructure.

  • Up to 15.4W / 30W of Power on 2 pairs
  • Support IEEE 802.3af or IEEE 802.3af/at
  • Supports 10/100/1000 Base-T applications
  • LED indicators for power input and PoE output
  • Internal AC/DC converter, no need for external power brick
  • Easy plug-and-play installation
  • Muti-protection

Specifications

  • No. of channels - 1
  • Pass Through Data Rates  -  10/100/1000Mbps
  • Power over Ethernet Output  -  Power Pin Assignment: 1/2 (-),3/6(+)
  • Output Power Voltage: 48Vdc
  • User Port Power: 15.4W / 30W
  • PoE protocol: IEEE 802.3af / IEEE802.3af/at
  • User Port Power    AC Input Voltage: 100 to 240 Vac
  • AC Frequency: 50 to 60 Hz
  • AC Input:0.5A 100 to 240 Vac
  • Dimensions  -  121mm x 50mm x 36mm
  • Indicators -   System Indicator: AC Power
  • User Indicator: Channel Power
  • Connectors  -  Shielded RJ-45, EIA 568A and 568B
  • Protection  -  Over current protection
  • Over load protection
  • Over voltage protection
  • Anti-interference protection
  • Environmental Conditions  -  Operating Ambient Temperature: 0 to 40℃
  • Storage Temperature: -10 to 40℃
  • Operating Humidity: Maximum 85%, Non-condensing
  • Storage Humidity: Maximum 90%, Non-condensing
