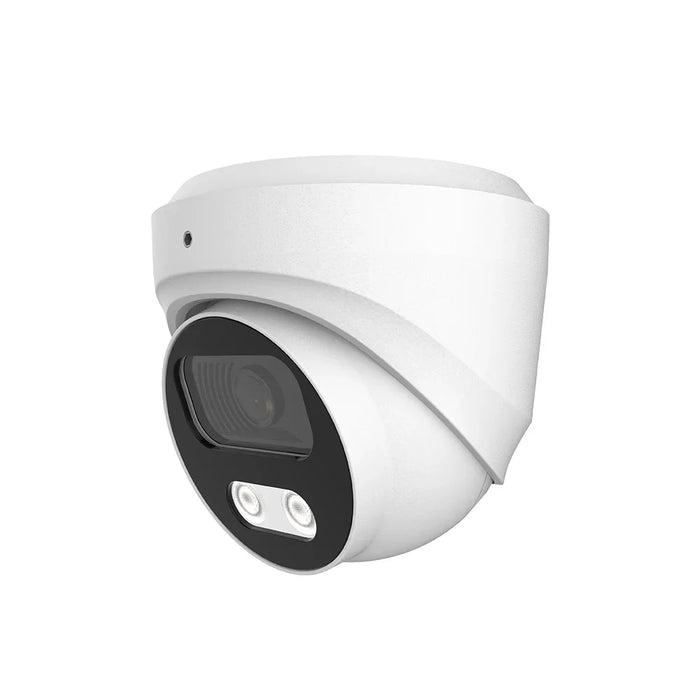

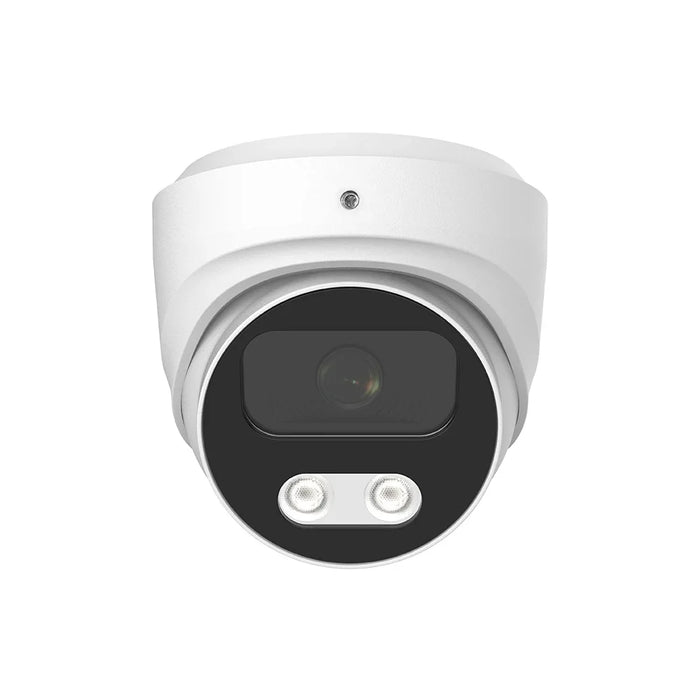

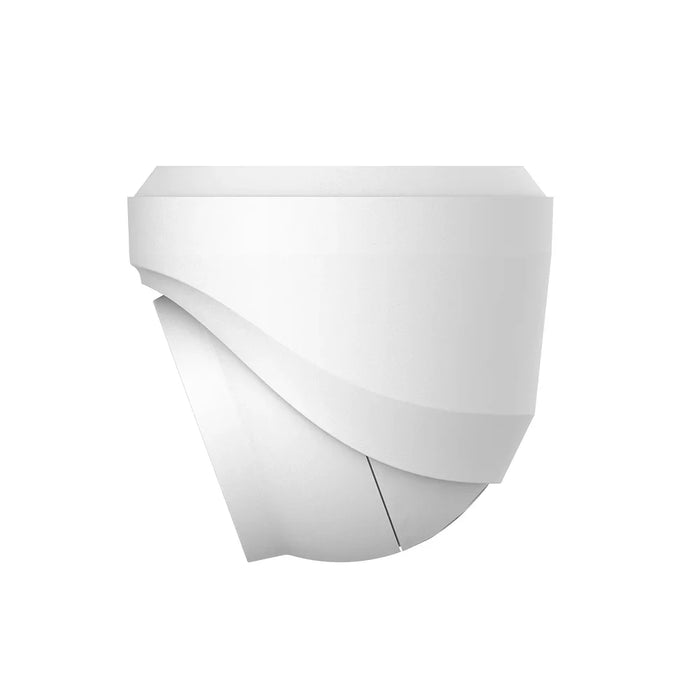

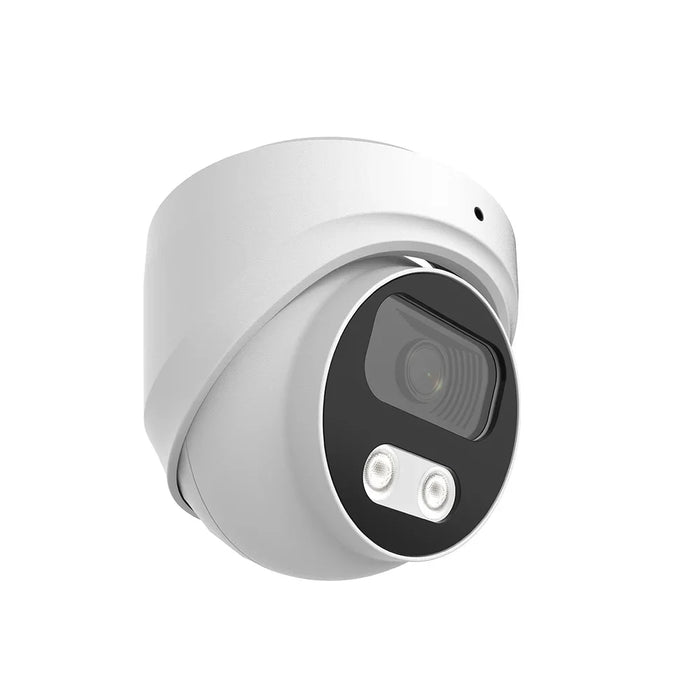

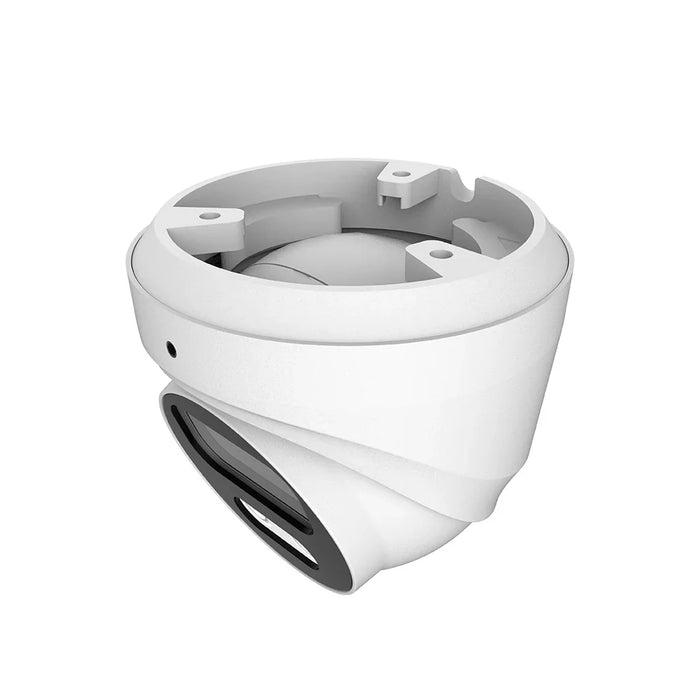

8MP Full Color 2.8mm Fixed Lens Hybrid Smart IP Network Turret Security Camera built-in Mic

Availability:
in stock, ready to be shipped
SKU CST-HI-D8SBFC28-DA

IP Turret Camera 8MP Hybrid Smart Night Vision AI Lite Mic – HI-D8SBFC28-DA

Enhance your surveillance system with the HI-D8SBFC28-DA IP Turret Camera, designed for superior performance and smart security. Featuring an 8MP SmartSens CMOS sensor, this camera delivers crystal-clear image quality with HDR support and intrusion detection AI analytics for reliable monitoring.

  • Ultra HD Clarity: 8MP resolution with 3872(H) × 2180(V) effective pixels ensures sharp, detailed video.
  • Hybrid Smart Night Vision: Dual IR and warm light LEDs provide up to 40m IR and 30m warm light range, ensuring visibility in all lighting conditions.
  • AI Smart Analytics: Intelligent human and vehicle detection minimizes false alarms, enhancing security efficiency.
  • Built-in Microphone: High-quality G711A/U, AAC audio compression ensures clear sound capture.
  • Power over Ethernet (PoE): Internal IEEE 802.3af POE support allows for easy installation without extra power cables.
  • Advanced Video Streaming: Multiple stream options from 8MP@20fps to 1080P@30fps, ensuring optimized bandwidth usage.
  • Weatherproof and Durable: IP67-rated metal housing protects against harsh weather conditions.
  • Wide-Angle Coverage: 2.8mm lens with a 106° horizontal field of view, offering extensive surveillance.
  • Secure Data Handling: Supports H.264/H.265 compression formats for efficient storage management.

Docs/Instruction Links

Specifications:

Camera

  • Sensor: 1/2.7″ SmartSens CMOS
  • Resolution: 8MP (3872 × 2180 pixels)
  • Video Compression: H.264, H.265, JPEG, AVI, MJPEG
  • Audio Compression: G711A/U, AAC
  • Shutter Speed: Auto (PAL: 1/25-1/10000 sec; NTSC: 1/30-1/10000 sec)
  • Minimum Light Required: 0.01 Lux (Color)
  • Scanning System: Progressive
  • Video Output: Network

Lens

  • Focal Length: 2.8mm (Horizontal FOV: 106°, Vertical FOV: 56°, Diagonal FOV: 127°)
  • Focus: Fixed
  • Lens Type: Fixed

Night Vision

  • LEDs: 2 Warm light (4000K), 2 IR LEDs
  • Range: IR up to 40m, Warm light up to 30m
  • Modes: Auto, Smart, Manual, Timed

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Wireless: Not Available
  • Supported Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, RTP, RTSP, NTP, etc.
  • ONVIF Version: 2.4 (Profile S/T)
  • P2P: Yes
  • PoE: Supports IEEE 802.3af
  • Video Delay: 0.3 sec (LAN)
  • Streaming Options: Multiple resolutions up to 3840 × 2160 @ 20fps
  • Web Browsers Supported: IE, Chrome, Firefox, Safari
  • Compatible Devices: iPhone, Android

Smart Features

  • Day/Night Mode: Color & Black/White (IR-CUT)
  • Image Enhancements: Brightness, Contrast, Sharpness, White Balance, Noise Reduction, Flicker Control, etc.
  • Privacy Masking: Up to 3 rectangular zones
  • Motion Detection: Supported
  • Wide Dynamic Range (WDR): HDR

Physical & Power

  • Material: Metal, IP67-rated (weather-resistant)
  • Anti-Cut Bracket: Yes
  • IR Cut Filter: Yes
  • Operating Temp: -20°C to 60°C, RH95% max
  • Power: DC 12V ±10%, 700mA
  • Size: 109 × 93mm
  • Weight: 600g
