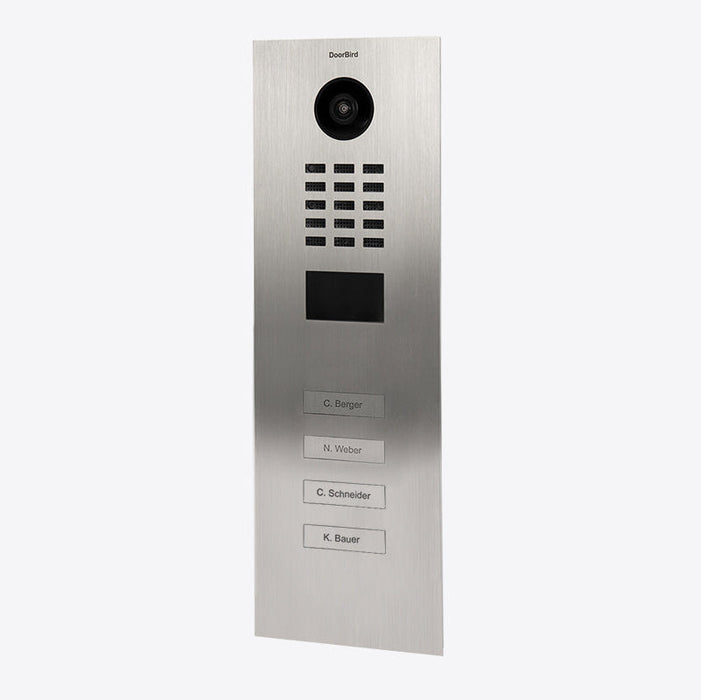

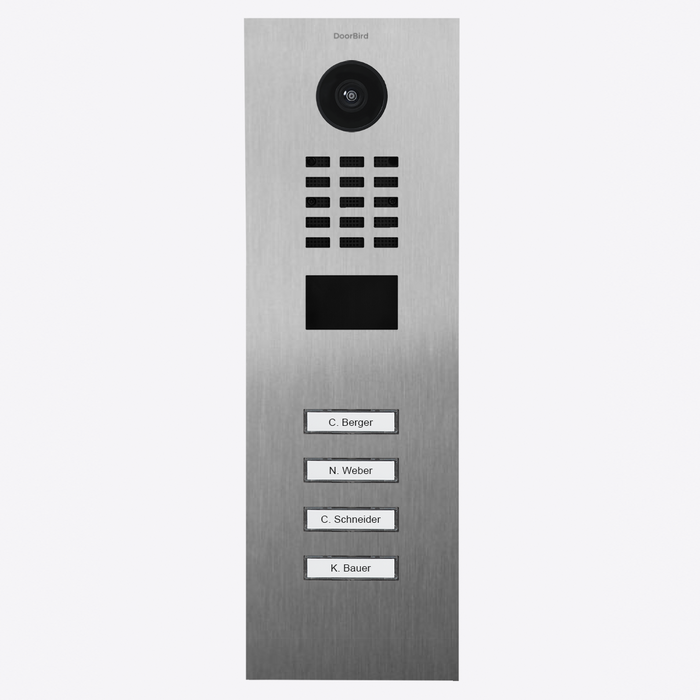

DoorBird D2104V Surface-Mount IP Video Intercom 720p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 4 Call Buttons - Stainless Steel

DoorBird D2104V Surface-Mount IP Video Intercom 720p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 4 Call Buttons - Stainless Steel
Availability:
Low stock
SKU DOB-D2104V-S-V2A-BRUSHED

DoorBird D2104V Surface-Mount IP Video Intercom 720p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 4 Call Buttons - Stainless Steel

Intercom system for multi-tenant buildings and businesses with 4 units, 4 call buttons

Open API
Local interface for integration with third-party systems and SIP
Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, Nice, Fibaro, Bang & Olufsen and others
Automatic door buzzer
For use in medical offices and office environments
Individual action schedules, e.g.:
RFID card “abc” has only access on Wednesday from 9 am until 11 am 4D motion sensor switches on external lamp between 9 pm and 6 am
Geofencing
Automatic door and gate opening when returning home
Night vision
With 12 Infrared LEDs
HDTV Video
Ultra wide-angle, hemispheric lens, 180°
Light sensor
For night vision mode
Microphone
Clear voice transmission
Noise reduction and echo cancellation (AEC, ANR)
RFID reader
Configurable remotely via App (e.g. time frame)
Motion sensor with 4D technology
Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
Call button
With backlit nameplate
Easy connection to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter (PoE, network data)
Two freely configurable bi-stable switching relays
Two doors or gates can be controlled via App
Status configurable via App: temporary or permanent circuit

  • Video intercom including surface-mounting housing
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • Intercom with 2 freely configurable bistable switching relays

Docs/Instruction Links

Specifications

  • Front panel 3 mm (0.12 in) For materials and colors see material board and Online Shop.
  • Mounting type surface-mounted, mounting housing sold separately
  • Call button Illuminated
  • Nameplate Plastic Metal cover plate and engraving available separately, see www.doorbird.com/buy
  • Power supply 15 V DC (max. 15 W) or Power over Ethernet
  • (PoE 802.3af Mode-A)
  • Weight 1650 g

Connectors

  • RJ45, for LAN/PoE
  • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller
  • Protection class IP65, IK08
  • Approvals CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471, UL 62368-1
  • Dimensions 403 x 131 x 48,75 mm (H x W x D)15.87 x 5.16 x 1.92 in (H x W x D)
  • Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing)

CURRENT SYSTEM REQUIREMENTS

  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP
  • Recommended installation height Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.

VIDEO

  • Camera HDTV 720p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
  • Night-vision Yes, light sensor, automatic IR-cut filter,
  • 12 Infrared LEDs (850 nm)

AUDIO

  • Audio components Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming Two-way, full duplex

NETWORK

  • Ethernet RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM


MOTION SENSOR

  • Type Active
  • Detection angle 54° (H), 70° (V)
  • Range 1 - 10 m (3.3 - 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration Via App, e.g.
    • Range (1 - 10 m / 3.3 - 32.9 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay,
    • push notification, SIP call [audio/video],
  • HTTP(s) notification)
    • • Individual schedules

RFID

  • Type Active Reader Passive Tag (ARPT) system
  • Standard ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
  • Frequency 125 KHz
  • Range 0 - 3 cm, depends on environment
  • Antenna Internal
  • Compatible Transponder RFID key fobs, sold separately, see www.doorbird.com/buy Up to 500 tags manageable
  • Configuration Via App, e.g.
    • • Tag (add, delete)
    • • Individual events (e.g. switch a relay,
    • SIP call [audio/video], HTTP(s) notification)
    • • Individual schedules
    • • RFID history available for 60 minutes in the app

INTEGRATED WIRELESS MODULES

  • RFID 125 KHz
  • Sensor 24 GHz, can be disabled

THIRD-PARTY INTEGRATION (DOORBIRD CONNECT)

  • Partnerintegrations see www.doorbird.com/connect
  • API see www.doorbird.com/api
  • Simultaneous videostreamsOne, for event-ba
