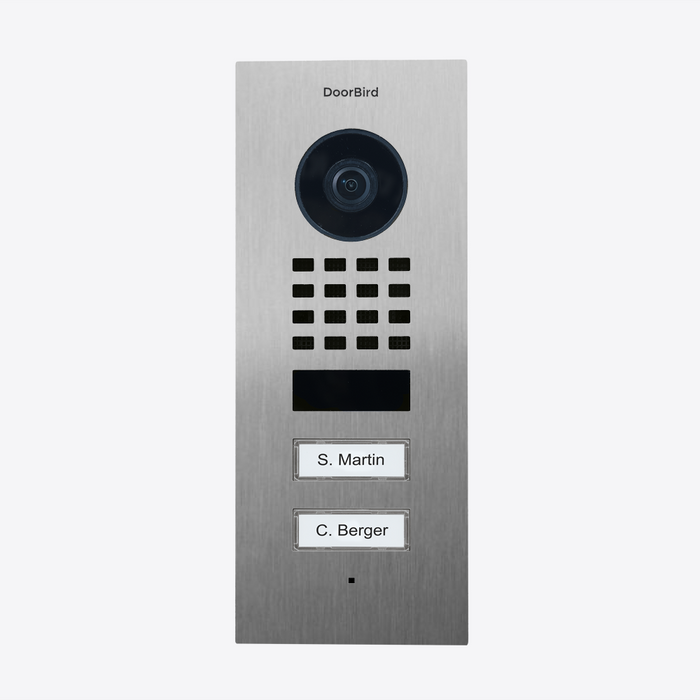

DoorBird D1102V Flush-Mount IP Video Intercom 1080p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 2 Call Buttons - Stainless Steel

DoorBird D1102V Flush-Mount IP Video Intercom 1080p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 2 Call Buttons - Stainless Steel
Availability:
Low stock
SKU DOB-D1102V-F-V2A-BRUSHED

DoorBird D1102V Flush-Mount IP Video Intercom 1080p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 2 Call Buttons - Stainless Steel

Video intercom for multi-tenant buildings and businesses with 2 units, 2 call buttons

Open API
Local interface for integration with third-party systems and SIP

Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP)

Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G

Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, Nice, Fibaro, Bang & Olufsen and others

Microphone
Video intercom with clear voice transmission

Automatic door buzzer
For use in medical offices and office environments

Individual action schedules, e.g.:
Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed 4D motion sensor switches on external lamp between 9 pm and 6 am

Geofencing
Automatic door and gate opening when returning home

Night vision
With Infrared LEDs

HDTV Video
Ultra wide-angle, hemispheric lens, 180°

Light sensor
For night vision mode

One freely configurable bistable latching relay
Control one door or one gate via App Status configurable via App: temporary or permanent circuit

Easy self-install
Quick installation of the intercom via QR code scan

Call button
With backlit nameplate

Motion sensor with 4D technology
Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)

Noise reduction and echo cancellation (AEC, ANR)

Easy connection of the intercom to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter (PoE, network data)

WiFi enabled
Works within a WiFi network, no LAN cable needed

Bluetooth Low Energy (BLE)
For access control, compatible external sensors and smart locks

  • Video intercom including flush-mounting housing
  • WiFi / LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • Intercom with 1 freely configurable bistable switching relay

Docs/Instruction Links

Specifications

  • Front panel 3 mm (0.12 in) For further materials and colors see material board and Online Shop.
  • Mounting housing (backbox) Stainless steel
  • Mounting type Flush-mounted
  • Call button Plastic Metal cover plate and engraving available separately, see www.doorbird.com/buy
  • Nameplate Illuminated Plastic Metal cover plate and engraving available separately, see www.doorbird.com/buy
  • Power supply 15 V DC (max. 15 W) or Power over
  • Ethernet (PoE 802.3af Mode-A)
  • Weight 647 g

Connectors

  • LAN/PoE (T+, T-, R+, R-)
  • Bistable latching relay, max. 1-24 V DC/AC,1 A, e.g. for electric door opener
  • External input for external door openerbutton
  • 15 V DC input (+, -), max. 15 W
  • Protection class IP65, IK08
  • Approvals CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi

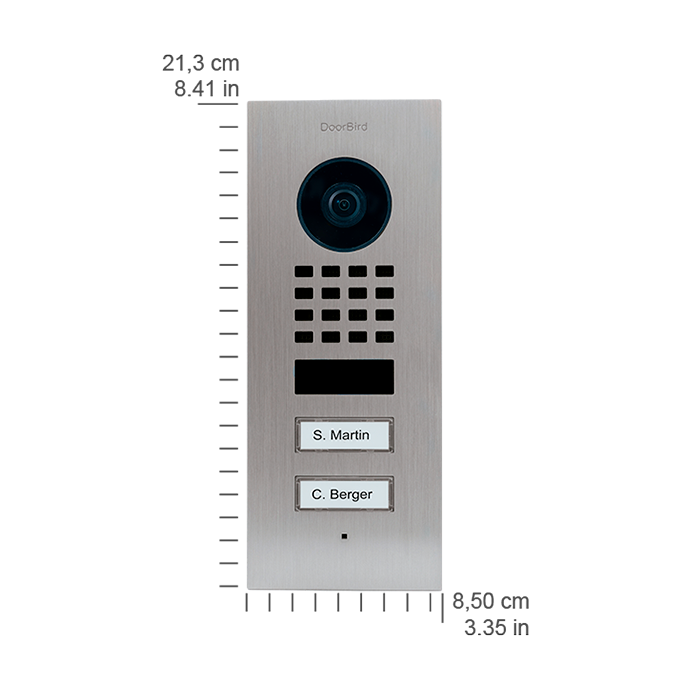

  • Dimensions 213,40 x 85 x 32 mm (H x W x D) 8.41 x 3.35 x 1.26 in (H x W x D)
  • Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

System requirements

  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband
  • Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP

Recommended installation height

  • Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.

VIDEO

  • Camera HDTV 1080p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
  • Night vision Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)

AUDIO

  • Audio components Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming Two-way, full duplex

NETWORK

  • Ethernet PoE 802.3af Mode-A, 10/100 Base-T
  • WiFi 2.4 GHz b/g/n
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM

MOTION SENSOR

  • Type Active
  • Detection angle 80° (H), 50° (V)
  • Range 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration Via App, e.g.
    • Range (1 - 6 m / 3.3 - 19.7 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay, push notification, SIP call [audio/video],
  • HTTP(s) requests)
    •  Individual schedules

INTEGRATED WIRELESS MODULES

  • WiFi 2.4 GHz
  • Bluetooth Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
  • Sensor 24 GHz, can be disabled

THIRD-PARTY INTEGRATION (DOORBIRD CONNECT)

  • Partner integrations see www.doorbird.com/connect
  • API see www.doorbird.com/api
  • Simultaneous video streams One, for event-based recording
