Klipsch PIC-800-T 8" 400 watts 2-Way Professional In-Ceiling Speakers 70V/100V/8Ohm (each)

Klipsch PIC-800-T 8" 400 watts 2-Way Professional In-Ceiling Speakers 70V/100V/8Ohm (each)
Availability:
Low stock
SKU KLIP-PIC-800-T

Klipsch PIC-800-T 8" 400w Max Power 2-Way Professional In-Ceiling Speakers (each)

The Klipsch PIC-800-T 8" Professional In-Ceiling Speaker is designed to deliver powerful, high-quality sound with minimal distortion. Featuring the innovative Tractrix® Hyperfold Port™, this speaker maximizes bass output while eliminating port noise. Its exclusive Sky Hook® Pro system ensures a quick, tool-free installation, making it ideal for commercial environments. The IPX5 rating guarantees weather resistance, while the 1" titanium compression driver provides clear, detailed audio. It has a power handling capacity of 100w continuous and 400w peak. With both black and white paintable grilles included, the PIC-800-T seamlessly blends into any space. Additionally, the Phoenix connector simplifies installation, making this speaker a versatile and reliable choice for any project.

  • Tractrix® Hyperfold Port™: Maximizes bass output while eliminating port noise.
  • Sky Hook® Pro System: Ensures quick, tool-free installation.
  • IPX5 Rating: Provides weather resistance for challenging commercial environments.
  • 1" Titanium Compression Driver: Delivers clear, detailed audio with wide dispersion.

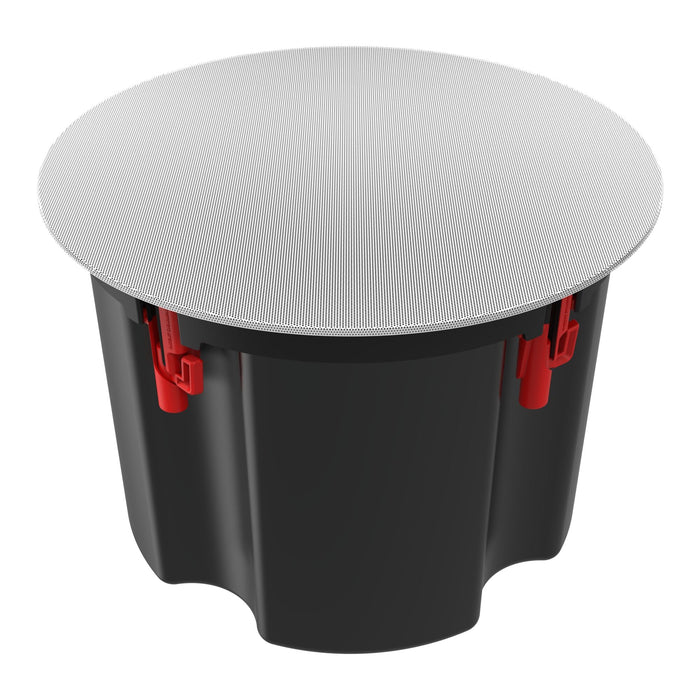

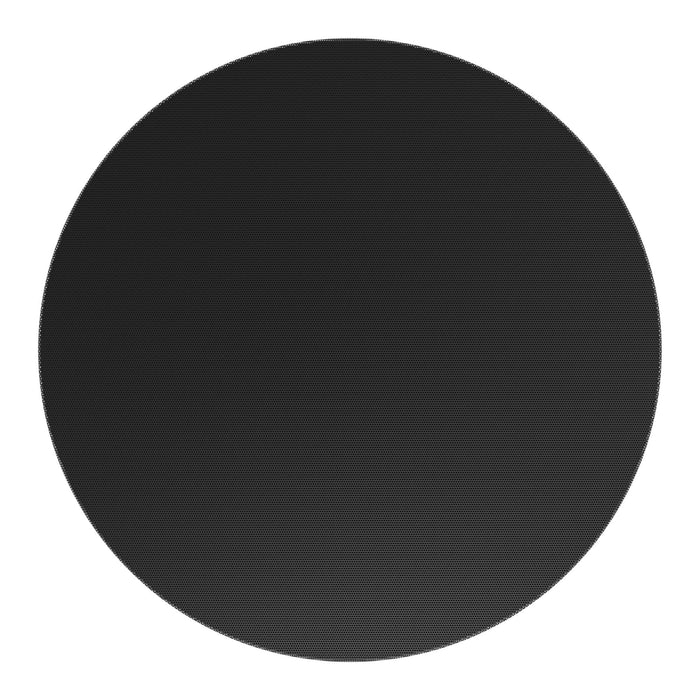

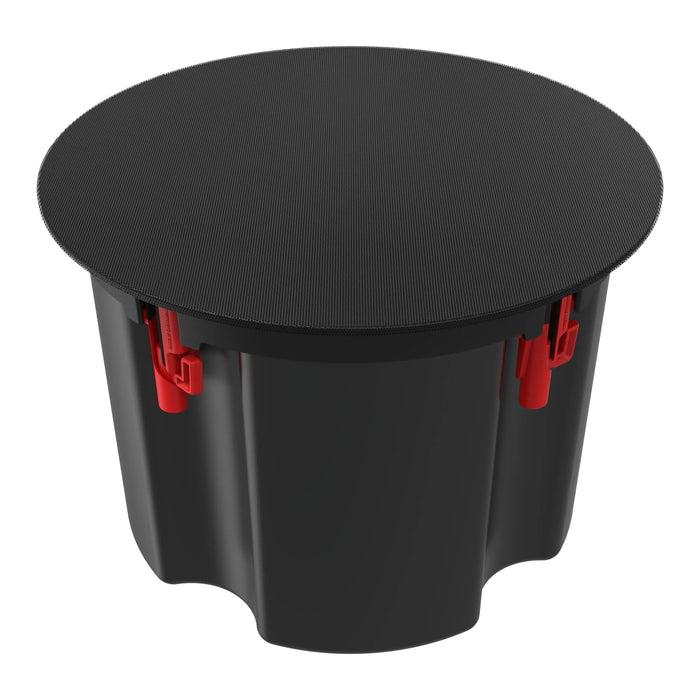

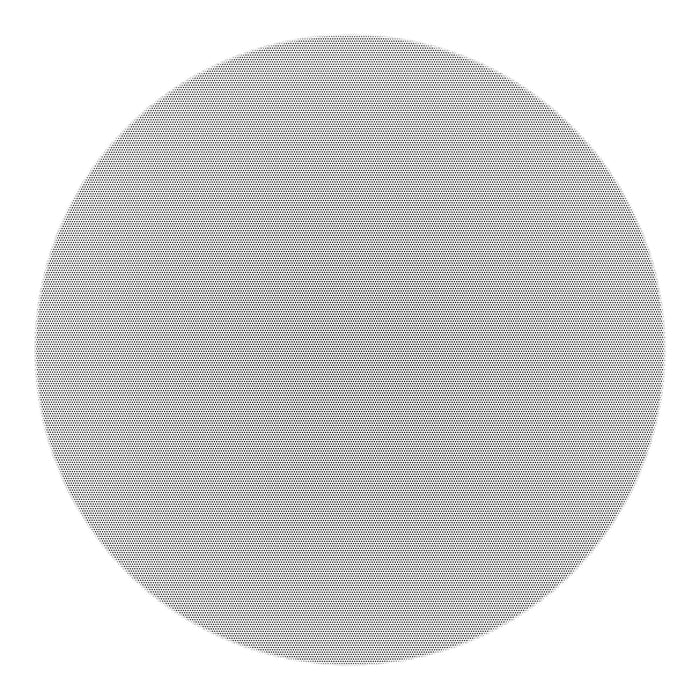

  • Paintable Grilles: Includes both black and white options to blend into any space.
  • Phoenix Connector: Simplifies installation with quick and intuitive connection.
  • Power Handling: Supports 100 watts continuous and 400 watts peak.
  • Wide Coverage: Offers extra-wide coverage with consistent energy distribution.
  • Durable Construction: Made from all-weather ABS plastic and metal can for durability.

SPECIFICATIONS

  • Frequency Response: 56Hz-20kHz +/- 4dB, 46Hz -10dB
  • Power Handling: 100 watts (21V) 50Hz-10kHz (400 watts peak)
  • Calc. Max. Cont. Output: 109dB
  • Sensitivity: 92dB
  • Coverage: 100° +/- 20°  1kHz-20kHz
  • Directivity Index: 7dB +/- 1.5dB 800Hz-20kHz
  • Nominal Impedance: 8 ohms   4.2 ohms at 150Hz minimum
  • Acoustic Crossover: 2kHz
  • Transducers: 8” woofer, 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge
  • Enclosure Material: All Weather Abs Plastic, Paintable; Metal Can
  • Enclosure Tuning: Vented via 3 folded  Tractrix ports
  • Input Connectors: 4 pin euro block
  • Transducers: 70V: 100W, 50W, 25W,12.5W | 100V: 100W, 50W, 25W | Bypass position: 8ohms nominal
  • Cutout Dimension: 12.5"
  • Mounting Depth: 10.313"
  • Overall Depth: 10.375"
  • Overall Overall Width: 13.625"
  • Thru Hole Width: 12.313"
  • Weight: 17 lbs
