Yamaha A-S501 2-Channel Stereo Integrated Amplifier with Built-in DAC - Silver

Availability:
Low stock
SKU YAM-A-S501SL

Yamaha A-S501 2-Ch Natural Sound Integrated Stereo Amplifier with Built-in DAC - Silver

Impressive high quality sound with a wide range of features and an elegant appearance. An integrated amplifier with the advantage of digital inputs.

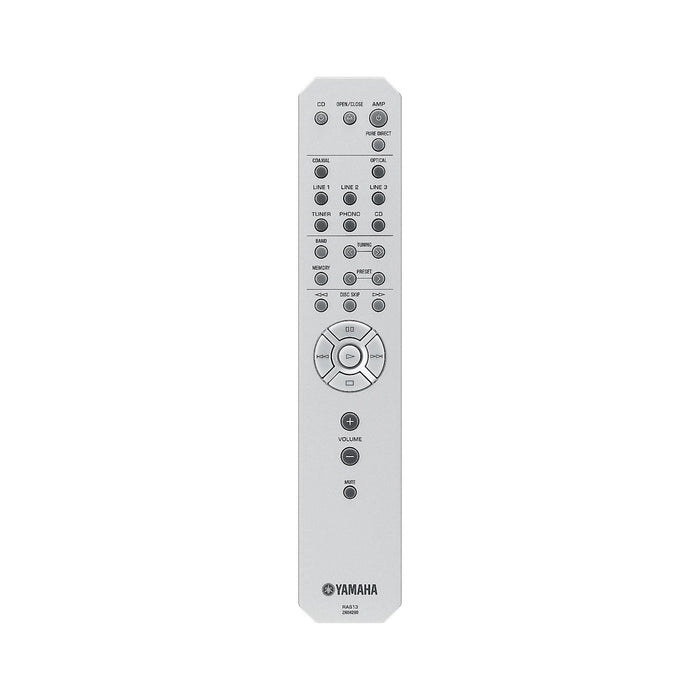

The Yamaha A-S501 Stereo Integrated Amplifier offers high-quality sound and a sleek silver design, combining advanced features for a premium audio experience. Built with Yamaha’s ToP-ART technology, it ensures clear, noise-free signal transmission for rich, dynamic sound. The amplifier includes high-quality components like custom-made power transformers and capacitors for optimal performance, along with a Pure Direct mode for maximum sound purity. It supports digital audio input for TV and Blu-ray players, while offering versatile speaker options with A, B, or A+B selection. Additional features include a subwoofer terminal, MM phono input for vinyl, and a remote control for easy operation. With gold-plated terminals and a sophisticated design, the A-S501 provides a refined, high-fidelity listening experience for music and home entertainment.

  • 85 W x 2-ch (20 Hz - 20 kHz)
  • Digital audio inputs for TV and Blu-ray Disc™ player
  • Pure Direct mode for greater sound purity
  • ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
  • I/O (input to output) direct symmetrical design
  • ART (Anti-Resonance and Tough) Base

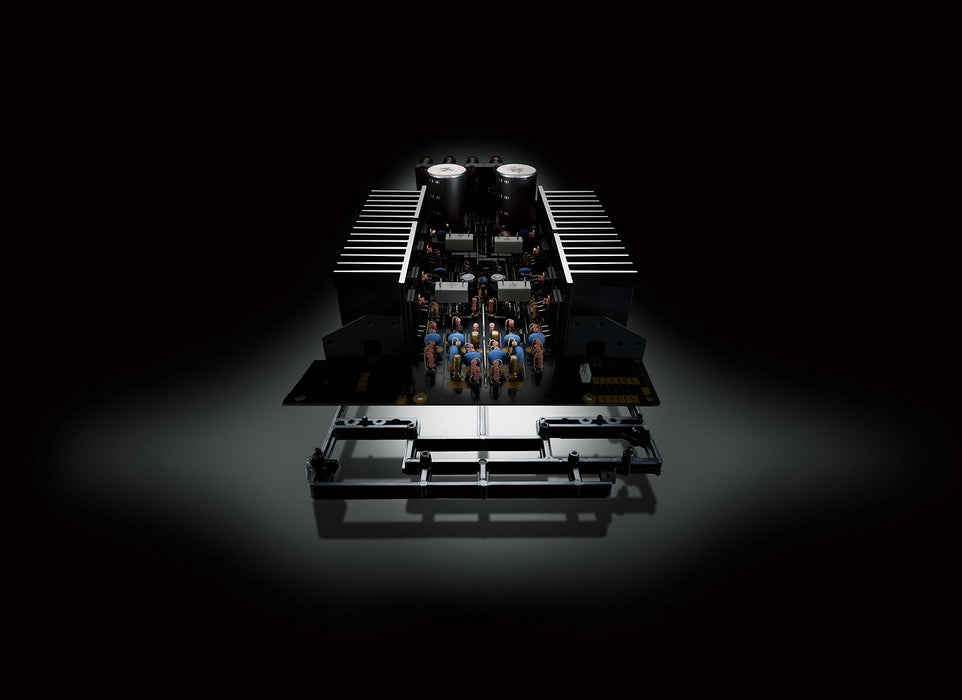

  • Custom-made power transformer / 12,000 µF block capacitors / extruded aluminum heat sinks
  • Gold-plated speaker terminals and RCA terminals

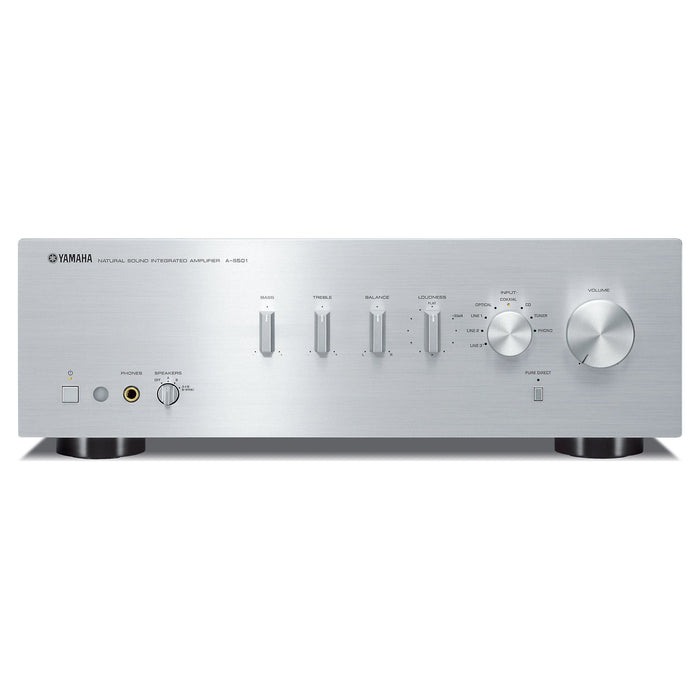

  • Simple yet sophisticated design (aluminum front panel)
  • Continuously Variable Loudness Control

Specifications:

  • Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz): 85 W + 85 W (0.019% THD)
  • High Dynamic Power/Channel (8/6/4/2 ohms): 130 W / 150 W / 185 W / 220 W
  • Frequency Response: 10 Hz - 100 kHz ± 1.0 dB
  • Total Harmonic Distortion (CD to Speaker Output, 20 Hz-20 kHz): 0.019% (50 W / 8 ohms)
  • Signal-to-Noise Ratio (CD): 99 dB (input shorted, 200 mV)
  • Damping Factor: 240

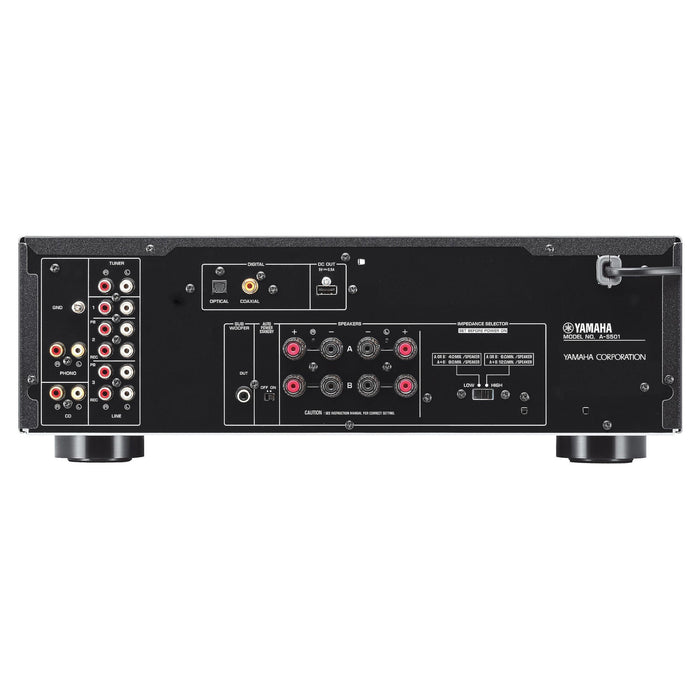

  • Digital Input: Yes (optical / coaxial)
  • Audio In / Out: 8 / 2
  • Subwoofer Out: Yes
  • Pure Direct: Yes
  • ToP-ART: Yes
  • DC Out: Yes
  • Standby Power Consumption: 0.5 W
  • Power Management (Auto Power Standby): Yes
  • Dimensions (W x H x D): 17-1/8" x 6" x 15-1/4"
  • Weight: 22.7 lbs
