Orion HCCA2000.4 HCCA Series 2000W RMS Compact 4-Channel Class-AB Amplifier

Orion HCCA2000.4 HCCA Series 2000W RMS Compact 4-Channel Class-AB Amplifier
Availability:
Low stock
SKU ORI-HCCA2000.4

Orion HCCA2000.4 HCCA Series 2000W RMS Compact 4-Channel Class-AB Amplifier

Experience Unrivaled Audio Power and Precision
The ORION HCCA2000.4 HCCA Series 2000W RMS 4-Channel Class-AB Amplifier sets a new standard for audio excellence, delivering a perfect blend of power, precision, and efficiency. Crafted for audiophiles who demand the ultimate in sound quality, this amplifier elevates your audio experience to extraordinary heights.

Elevate Your Audio Journey
Elevate your audio experience with the ORION HCCA2000.4 HCCA Series 2000W RMS 4-Channel Class-AB Amplifier. Expertly crafted and featuring advanced capabilities, this amplifier transforms your listening into an immersive sonic adventure.

Uncompromising Sound Fidelity
Rediscover your music with unmatched clarity and detail. From gentle melodies to powerful crescendos, every sonic element is faithfully reproduced.

Unparalleled Power and Precision
Experience a perfect marriage of power and precision that redefines your audio landscape. The ORION HCCA2000.4 HCCA Series Amplifier seamlessly merges commanding power with sonic accuracy, creating a listening journey that captivates the senses.

Elevate Your Drive
Elevate your driving experience with the ORION HCCA2000.4 HCCA Series 2000W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey and embrace a level of sonic excellence that sets new benchmarks.

  • Class-AB Amplification - Experience the harmonious blend of Class-AB amplification, combining the efficiency of Class B with the sound quality of Class A for an unparalleled sonic journey.
  • 2000 Watts RMS - Immerse yourself in a world of commanding audio power with 2000 Watts RMS, delivering impactful and dynamic sound performance.
  • Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
  • Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
  • Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring lasting reliability.
  • Compact and Stylish Design - The amplifier's sleek design seamlessly integrates into your audio setup, adding a touch of sophistication without compromising performance.
  • Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and unwavering performance.

All MOSFET Power Supply
Remote Gain Control
Heavy Gauge Direct-WireHigh Current Power and Speaker Terminals
Electronic Crossover Network
Bass Boost Circuitry
Tri-Mode Capable
High-Pass/Low-Pass Filter Control
Power and Protection LED Indicators
Soft Turn-on/Turn-off
Balanced Input (CMRR)
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

- Frequency Response 10Hz to 35kHz +/- 1 dB
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
- Low Pass Crossover Continuously variable (40-300Hz)
- Phase shift control 0 to 180
- Bass Boost 0-18dB variable
- Distortion at Rated Power 0.005% THD+N
- Damping Factor > 100
- Input Sensitivity(RMS) 200mV to 6V
- Supply Voltage Range 9 to 16V
- Input Impedance 20K Ohms
- Amplifier Efficiency > 67% into 2 Ohms load at max. power
- SNR at rated output power and lowest impedance > 95dB
- Fuses: 200A recommended (not included)
- Dimensions (L x W x H): 20.47" x 11.89" x 3.15" (520x302x80mm)

Power Ratings:

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 300W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 500W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1000W

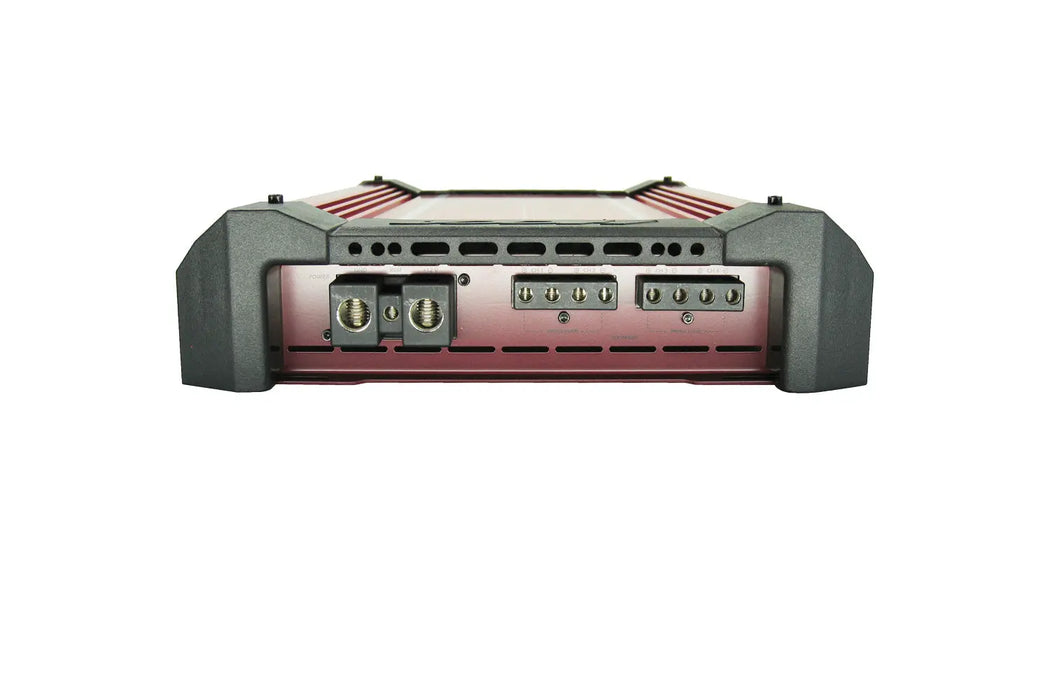

Power Terminal Management:

 -  Positive Terminals: 1 x 0 AWG.
 - Negative Terminals: 1 x 4 AWG.
 - Remote Turn-ON Signal: 10 AWG.
 - Speaker Output Terminals: 10 AWG.
